ID: 411
Open
Description

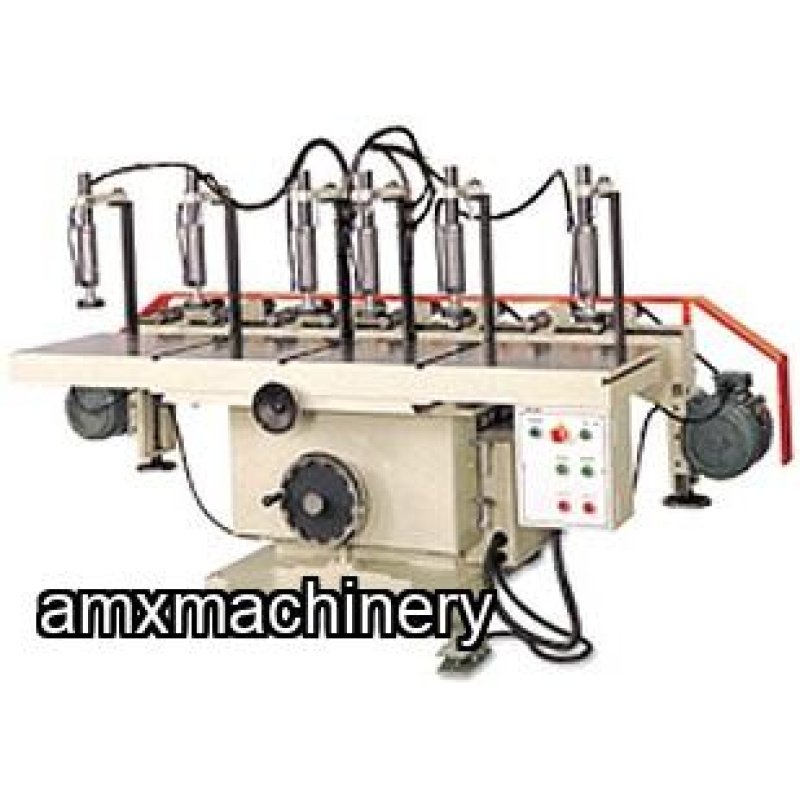

PARTE # 2TA-BR-52 – TALADRO MULTIPLE HORIZONTAL DE 1 LADO – 50” LARGO
New with warranty
Suitable and affordable for industrial and small workshop use.
Capable of using "multiple drill head" for the drill distance less then 2".
Easily adjust the drill position and add more drill spindles.
Pneumatic clamp and drill head travel operated by foot pedal, hands free.
Pneumatic and hydraulically stroke control for max. drilling power.
Each spindle can be horizontally adjusted in position quickly.
Cast iron base and table for durable usage.
OPTIONAL Multiple Drills Head.
BR- 52SD - EXTRA DRILL CHUCK SPINDLE
BR- 52MDC - EXTRA SPINDLE FOR GEAR DRILL HEAD
BR-101 - BASIC SINGLE DRILL UNIT
BR-103 - BASIC SINGLE UNIVERSAL DRILL UNIT
SPECIFICATIONS | BR-52 | BR-54 | BR-2072 | BR-4080B |
Motor (3 PH) | 3 HP x 2 | 3HP x 2 | 3 HP x 2 | 3 HP x 2 |
(PREWIRE) | 110/230V | 110/230V | 110/230V | 110/230V |
Drill Speed (RPM) | 3400 | 3400 | 3400 | 3400 |
Drill Chuck | 1/2" | 1/2" | 1/2" | 1/2' |
Spindle Stroke (Max.) | 4" | 4" | 4" | 4" |
Table Size(W x L) | 18" x 50" | 18" x 72" | 10" x 72" | 18" x 49" |
Max. working Length | 50" | 72" | 72" | 48" |
Multiple Drill Head Available | Yes | Yes | Yes | No |
Air Clamp | 2.5 | 5.5 | 5.5 | 11 |
Standard Drill Spindle | 4 |
|
|
|
Max. Drill Spindle |
|
|
|
|
Max. Drill Distance (Chuck Type) | 2" | 2" | 2" | 2" |
N.W. | 2710 LBS | 3180 LBS | 4200 LBS | 3960 LBS |
G.W. | 2980 LBS | 3420 LBS | 4800 LBS | 4380 LBS |
