Identificador: 1605
Abierta

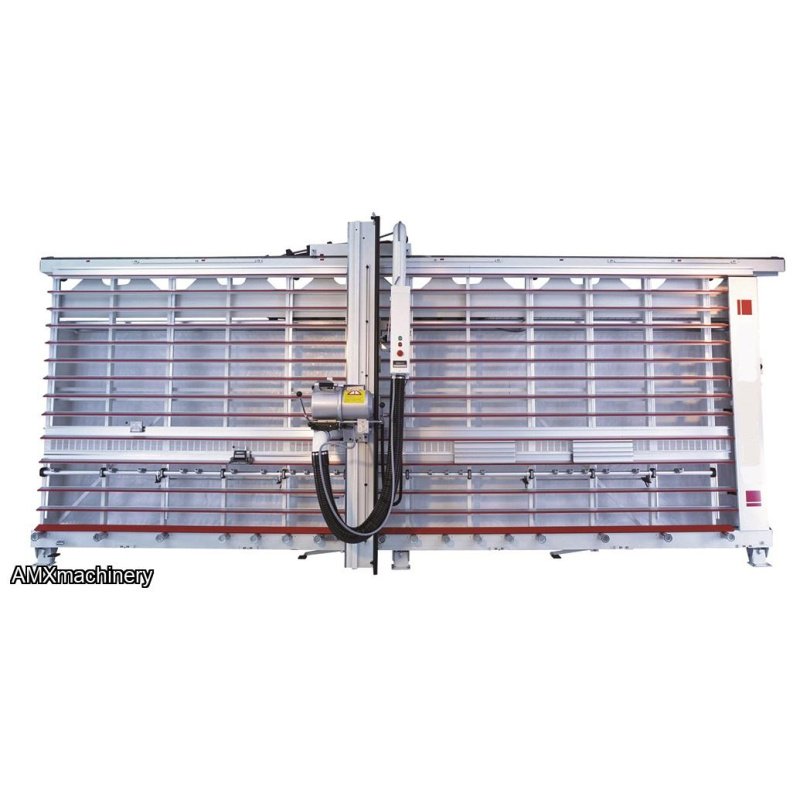

SIERRA ESCUADRADORA VERTICAL - STANDARD - CAP. 168” X 66” X 3-1/8”
AMXmachinery
Descripción
PARTE: 2ST-STANDARD - SIERRA ESCUADRADORA VERTICAL - STANDARD - CAP. 169” X 66” X 3-1/8”
NUEVA CON GARANTIA
• Swiss made quality for accuracy and durability!
• Very stable, all welded steel frame suitable for free-standing or wall-mount installation
• Heavy-duty panel support rollers with integral foot pedal braking system
• Convenient, sturdy, two-section mid-shelf with moveable aluminum fingers allows comfortable working of small parts and ability to stage material on one side of the saw
• Snap-in aluminum small parts supports (pair) for stability of small parts cutting on mid-shelf
• Automatic, mechanically shifting aluminum support grid with replaceable plastic laths
• Full length measuring channel with inches/metric scales and measuring flip stop
• Second measuring channel with one auxiliary 4” wide flip stop
• Vertical cutting stations 40 inches on center (1 meter optional)
• TRK dust collection system with cable chain hose take-up; note: requires connection to a collector
• 7-1/2 hp, 220/440V, 3-phase motor with brake, Y- soft starter, and insulation to 77dB
• 300 mm (11-7/8”) HFG (hollow face) carbide saw blade
• Main blade, climb-cut scoring for chip-free cutting of melamine, veneers, and laminates
• Template bar with six stops for setting typical horizontal cuts
• Repeat rip device with roller follower and 5’ capacity for strip cutting from top of panel
Pago y Devoluciones
- Forma de pago
- Transferencia y Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
TORNO PARTES IRREGULARES AUTOMATICO
PARTE: 12138 – TORNO PARTES IRREGULARES AUTOMATICO
USADO – BUENAS CONDICIONES
4 pieces worked
contemporaneously
max. diam. of work mm.
280
max. working length mm.
1250
cutters rpm 4.950
cutter motor power Hp 10
( 7,5 Kw )
rotation speed of pieces
rpm ( min.0 / max.100 )
feed speed mm./1 ( min.0
/ max. 500 )
diam. of cutters mm. 210
pneumatic system
pressure 6/10 bar
totally enclosed
total installed power Kw
10
connection voltage Volt.
380 / Hz ...
AMXmachinery
PARTE: 1SL-DC-HVS00100 - LIJADORA DE BANDA – OSCILANTE - MOTOR 3 HP
PARTE:
1SL-DC-HVS00100 - LIJADORA DE BANDA – OSCILANTE - MOTOR 3 HPNUEVA CON GARANTIAVERTICAL Y HORIZONTALBANDA OSCILANTEMOTOR: 3 HP, 220V, 60 Hz, 1 FASEDIMENSIONES DE LA BANDA LIJA: 6" X 99"POSICION DE LA BASE DE LIJADO: 0 - 90 GRADOSPESO: 184 KGSEMPAQUE: 1 CAJA
AMXmachinery
LIJADORA DE TAMBOR 37"
PARTE # 2SM-937003 - LIJADORA DE 2 TAMBORES - 37" DE ANCHO – 5 HP, 220V, 1 FASEPARTE # 2SM-937103 - LIJADORA DE 2 TAMBORES - 37" DE ANCHO – 5 HP, 220V, 3 FASESSPECIFICATIONSSanding Capacity:Maximum Width (in): 25, 37, 50Minimum Length (in): 3-1/2Maximum Thickness (in): 25″ model: 637″ & 50″ models: 12Minimum Thickness (in): 1/32Dimensions HxWxD (in):25″ model: 43 x 46 x 3137″ model: 43 x 58 x 3150″ model: 50 x 71 x 31Drum (in): (extruded aluminum)25″ model: 5 x 2537″ model:...
AMXmachinery
GUILLOTINA PA5A CHAPA - CASATI MACCHINE TSO TSI
PARTE: 12157 - GUILLOTINA PA5A CHAPA - CASATI MACCHINE TSO TSIUSADA – MUY BUENAS CONDICIONESCombined length- and crosscut veneer guillotineYear of manufacture 1980Cutting length mm 4.200Length of cross-cut mm 600Strip width max mm 700Cutting height mm 60Strip width min mm 25Digital readout YesSafety device YesCross cutting device YesCross-cut guillotine YesPressure beam hydraulicBlade drive hydraulicAvailability short-term, ex location customer!Operating status dismantled/ stored
