Description

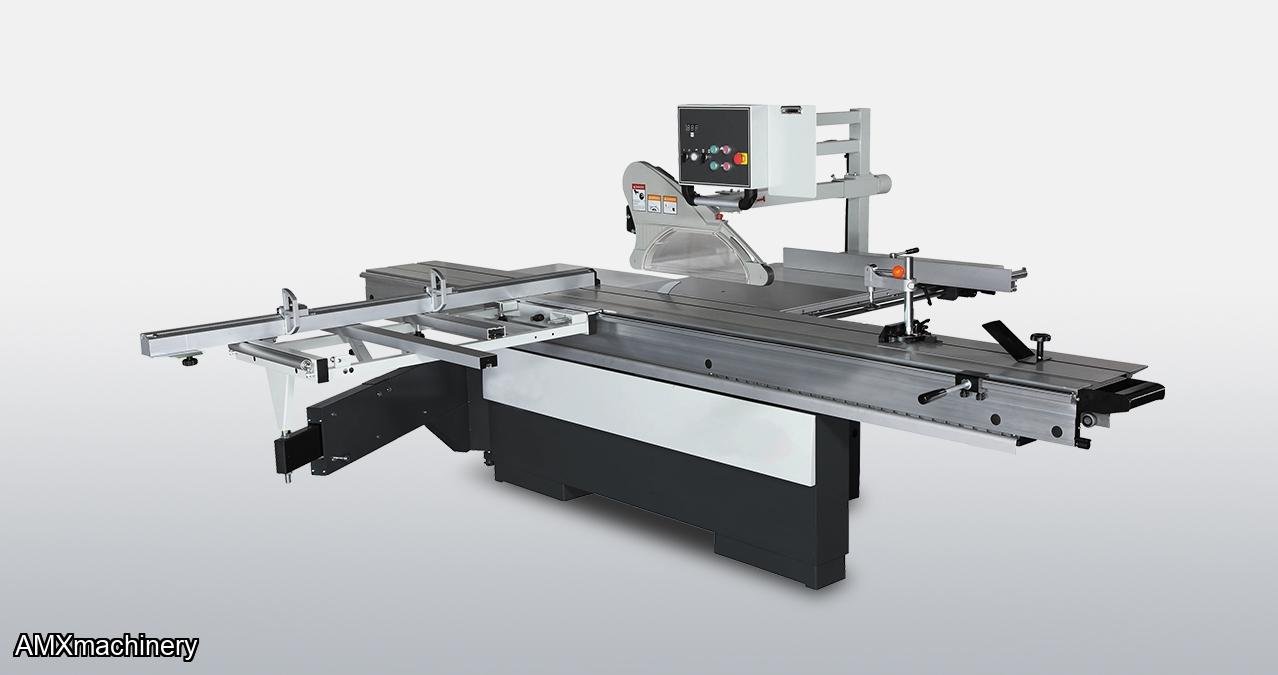

PARTE: 2CK-D405A
Motorized blade height & tilt adjustment with a digital angle readout

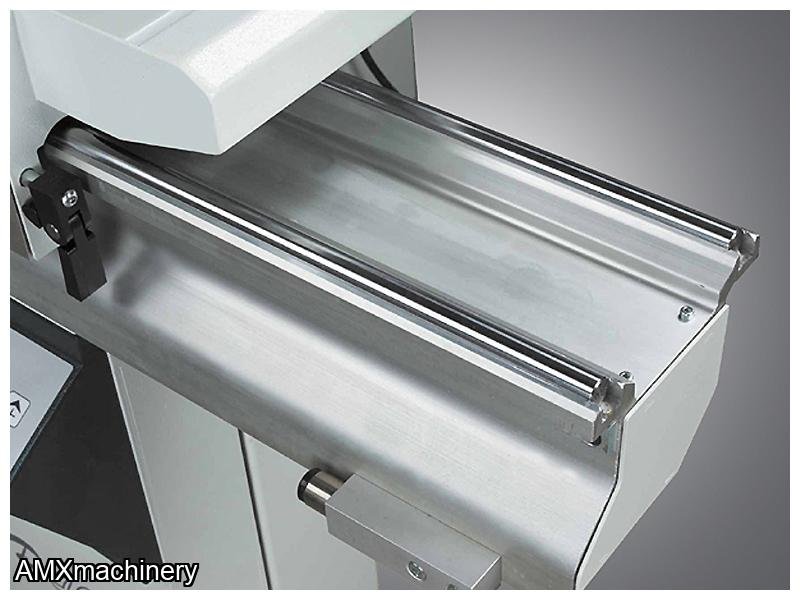

- Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
- Powerful 7.5 HP main motor and separate 1HP scoring motor
- Ergonomic eye level control panel for adjusting the blade height, and blade angle along with on/off switches for the main and scoring motors
- Accurate crosscut miter fence for fast length and angle setting
KEY ADVANTAGES
- Motorized blade rise/fall
- Motorized blade tilting with electronic angle display on control panel
- Overhead control panel can be adjusted for operator convenience
- Convenient external manual scoring adjustment
- Powerful 7.5 HP main motor with separate 1HP scoring motor
- (3) saw blade speeds for optimum cutting results in various materials
- Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides

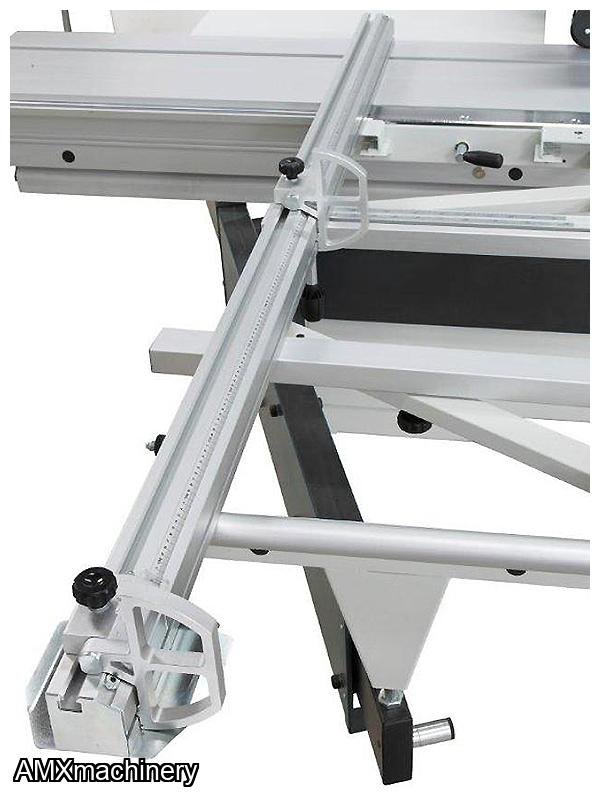

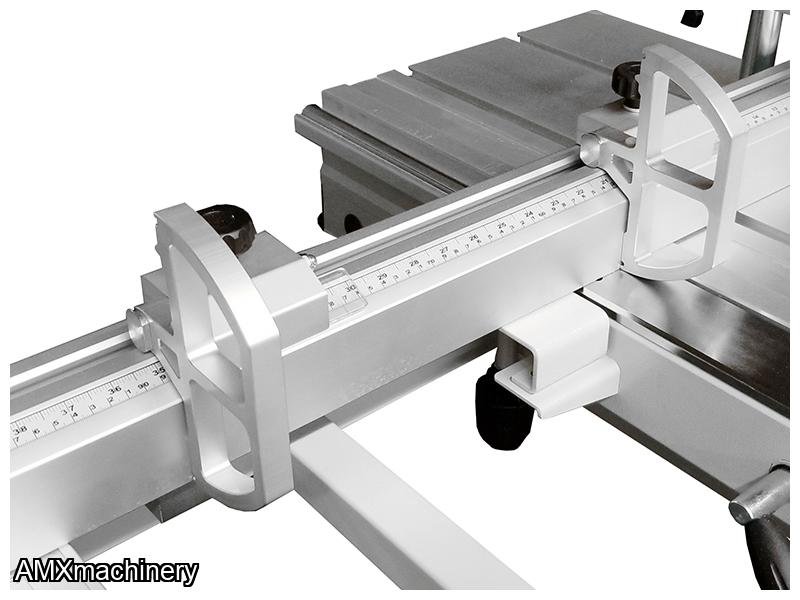

- Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of workpiece during cutting operations
- Overhead CE blade guard with dust port
- Complete with eccentric clamp and wedge for solid wood cutting
|
|
Metric |
Inch |
|
Sliding table dimensions |
3200 x 395mm |
126 x 15.5″ |
|
Cast iron table dimensions |
548 x 896mm |
21.6″ x 35.3″ |
|
Extension table (rear) |
952 x 896mm |
38.7″ x 35.25″ |
|
Extension table (front) |
830 x 320mm |
32.7″ x 12.6″ |
|
Main saw blade (Max.) |
400mm |
16″ |
|
Main saw bore dia. |
30mm |
|
|
Max. cutting height @ 90o (355mm) |
105mm |
4.13″ |
|
Max. cutting height @ 90o (400mm) |
130mm |
5.12″ |
|
Max. cutting height @ 45o (355mm) |
70mm |
2.75″ |
|
Main motor power |
7.5 HP |
|
|
Main blade speed |
3000 / 4000 / 5000 RPM |
|
|
Scoring blade dia. |
120mm |
|
|
Scoring blade bore dia. |
20mm |
|
|
Scoring blade motor power |
1 HP |
|
|
Scoring blade speed |
8000 RPM |
|
|
Max. rip cutting width |
1300mm |
51″ |
|
Cutting width adjustment |
Manual |
|
|
Saw height adjustment |
Motorized |
|
|
Saw blade tilting adjustment |
0~45o (Motorized) |
|
|
Scoring saw adjustment |
Manual |
|
|
Dust collection outlets |
120 / 60mm |
4.72″ / 2.4” |
|
Machine NW / GW |
575 / 666 kgs |
1265 / 1465 lbs |
|
Sliding table NW / GW |
141 / 173 kgs |
310 / 381 lbs |
|
Machine total weight NW / GW |
740 / 874 kgs |
1628 / 1923 lbs |
|
Electrics |
230/3/60 =26.20 Full total Amps |
|
