Description

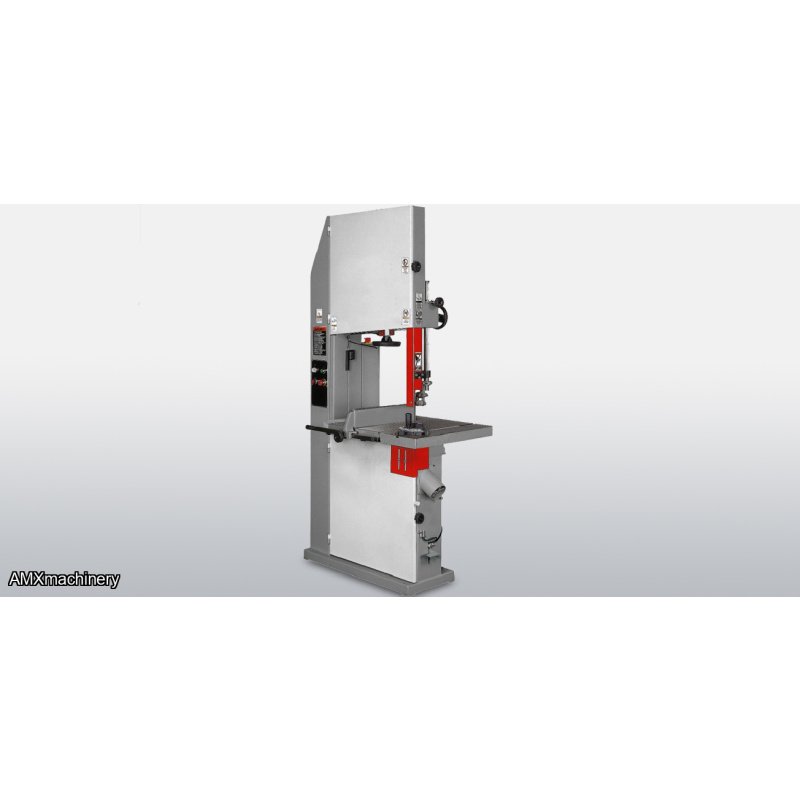

SIERRA CINTA 24" - 2 EN 1- 7.5HP - 2CK-HB600A
- 2-in-1 bandsaw can run up to a 2” wide blade for resawing and down to a ¼” for curve cutting
- Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention
- Cast iron worktable is precision ground and can tilt to 45o
- Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
- Heavy gauge steel frame ensures vibration free cutting
- Upper and lower guide assemblies with Bakelite side guides to ensure cool running of the saw blade and a back guide thrust bearing
- Micrometric adjustment to upper guide by rack and pinion
- Foot brake for quick stopping of the blade
|
Saw wheel diameter |
23 ½” |
|
Table size |
31 ½” x 23 ¾” |
|
Table tilting |
0° – 45° |
|
Throat capacity |
22-7/8″ |
|
Height capacity |
13 ¾” |
|
Width of wheel |
2″ |
|
Blade speed |
710 RPM (4458 FPM) |
|
Blade length |
173-5/8″ ~ 176 ½” |
|
Blade width |
¼” ~ 2″ |
|
Motor |
7.5 HP |
|
Dust hood diameter |
4” x 2 |
|
Net weight |
748 lbs. |
|
Gross weight |
990 lbs. |
|
Machine size (LxWxH) |
42″ x 31″ x 81″ |
|
Packaging size (LxWxH) |
85″ x 25″ x 43″ |
|
Electrical |
230/3/60 = 12.4 Full Load Amps 575/3/60 = 4.5 Full Load Amps |
