ID: 961
Open
Description
PARTE: 2NC-NT750-10 - ROUTER DE PEDESTAL – 10 HP – GARGANTA 29-1/2”
Nuevo con garantía
10 HP spindle drive motor
Chuck to tabletop maximum: 7-1/2"
Throat clearance: 750mm (29-1/2'')
2 Speed Spindle: 8,100 / 16,300 RPM
Spindle travel: 95mm (3-3/4)

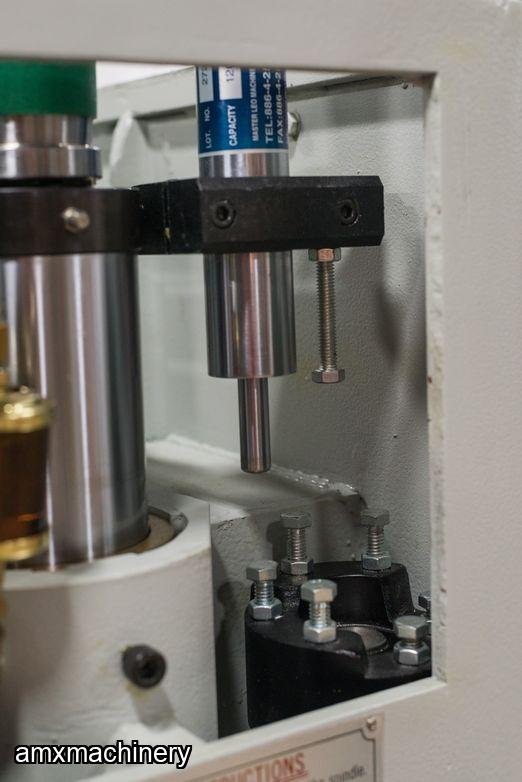

Depth stops: 6 position turret stops, adjustable
Table travel: 190mm (7-1/2'')
Table surface area: 915mm x 101mm (36" x 40")
Table tilt: 45 degree front downward tilt
Micrometric table raise: 1/32" (1mm) per full revolution of hand wheel

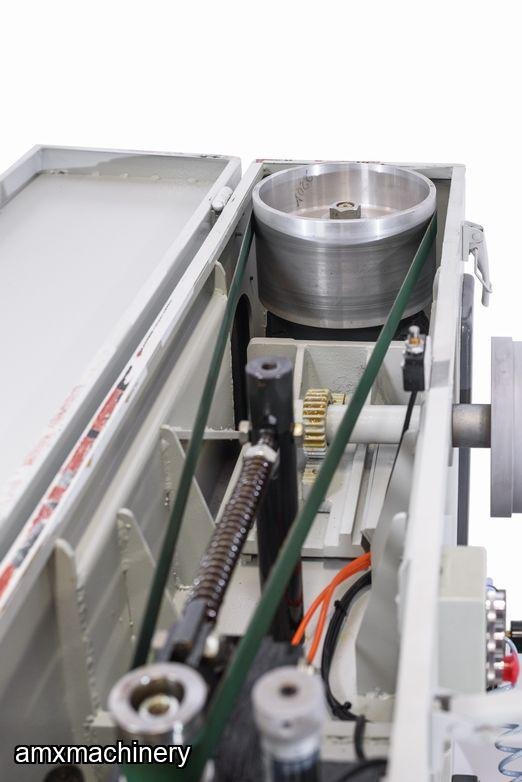

35 x 2330mm (1-3/8" x 92") flat belt
Dust port size: (1) 3" requiring 350 CFM at point of extraction
Net weight / Gross weight: 1465 lbs / 1650 lbs
Packing dimensions: (L) 66" x (W) 44" x (H) 71"
(1) Tool box
Warranty is one year parts
All machines are tested stateside prior to shipment providing trouble free start up.
Machine Hp. = 10 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 26 Amps

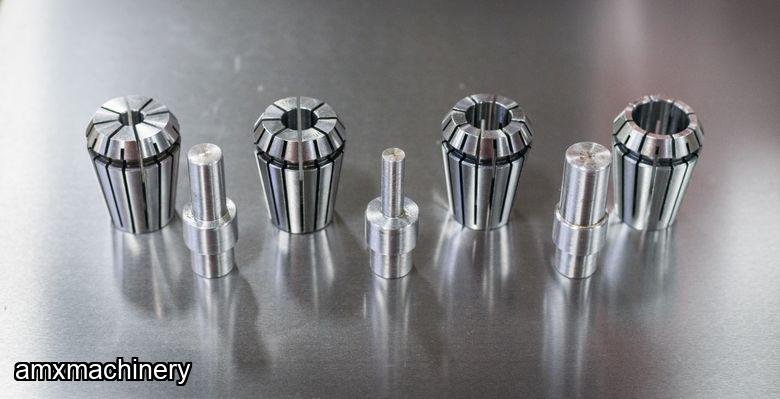

Configuration = 1/4'' 3/8'' 1/2'' Collet
Spindle RPM = 8100 / 16300 RPM
Elevation Style = Manual Wheel Adjustment
Elevation Sys. = Jack Screw / Linear Guides
Total Hp. = 10 Hp.
Electronics = CE Approved Components
Control Voltage = 230 Volt
Throat Capacity = 29-1/2''
Min. Thickness = 1-1/2'' Collet to Table
Max. Thickness = 7-1/2'' Collet to Table
Vertical Travel = 7-1/2''
Dust Collection = (1) 3'' @ 245 CFM
Dust Port Out = 3''
Emergency Stop = Push Button
Guarding = High Visibility Guarding
Operation Style = Pneumatic Foot Pedal
Fence Type = Adjustable Fence
Fence Dims. = 2-1/2'' x 40''
Tiltable = 45 Degrees
Frame Const. = 3/8 Steel Construction
Worktable Dims. = 39-3/4'' x 35-1/2''
Table Const. = Machined Steel
Decible Rating = 73 Db
Net Weight = 1462 Lbs.
Gross Weight = 1647 lbs.
Machine Dims. = 40'' x 62'' x 64''
Packaging Dims = 44'' x 66'' x 71''
