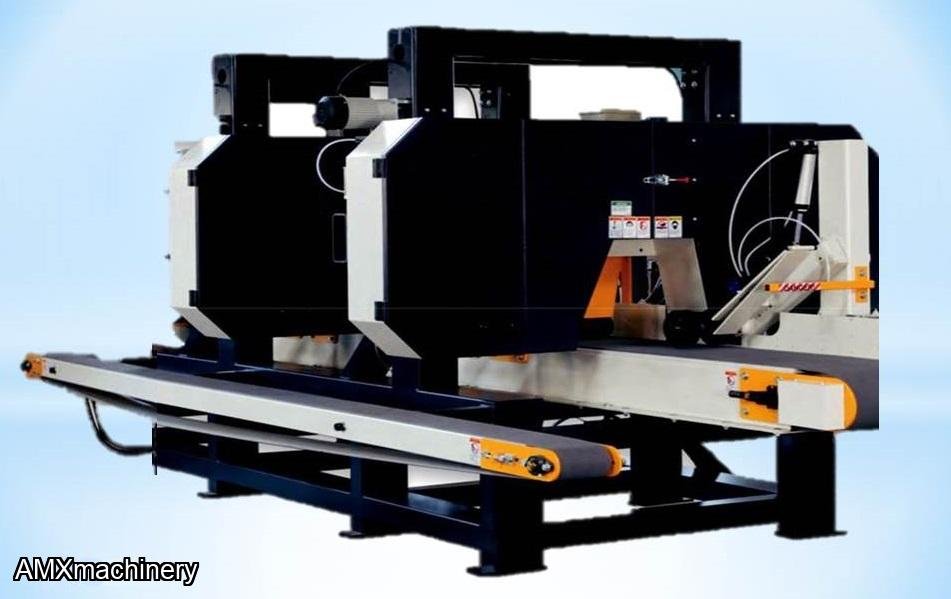

PARTE: 3HP-HP-400-2 - REASERRADORA HORIZONTAL – 2 SIERRA BANDA – 400 MM ANCHO X 250 MM ALTO
Nueva con garantía – Uso Rudo
Specifications:
1.With Digital Readout
2.Max. Workpiece Size: 400mm(W) x 250mm(H)
3.Conveyor Belt Size: 385mm(W) x 8130mm(L)
4.Saw Wheel Dimension: Φ28" x 2"(Thickness)
5.Saw Blade Size: 180"(L) x 2"(W)
6.Dust Hood Diameter: 4" x4
7.In-feed Speed: 4-20M/min
8.Cutting Size: 4-250mm(T)
9.Controlling Blade Tension: Air/Hydraulic Compensation System
10.Main Motor: 30HP x2
11.Hydraulic Motor: 3HP
12.Elevation Motor: 1/4HP 6P x2
13.Machine Dimensions/Weight: 3610 x 2130 x 1900mm /2700kgs
Packing Dimensions/Weight: 3710 x 2230 x 2100mm /3040kgs
14.Mist Coolant System
15.Air Cylinder Hold Down Pressure Roller
16.Min. Length of Working Piece: 600mm
17.With Inverter Motor: 30HP x2
18.Rubber Pressure Roller
19.With Return Conveyor
20.Saw kerf: 1.35mm
20._______Volt, _______Hertz
