Description

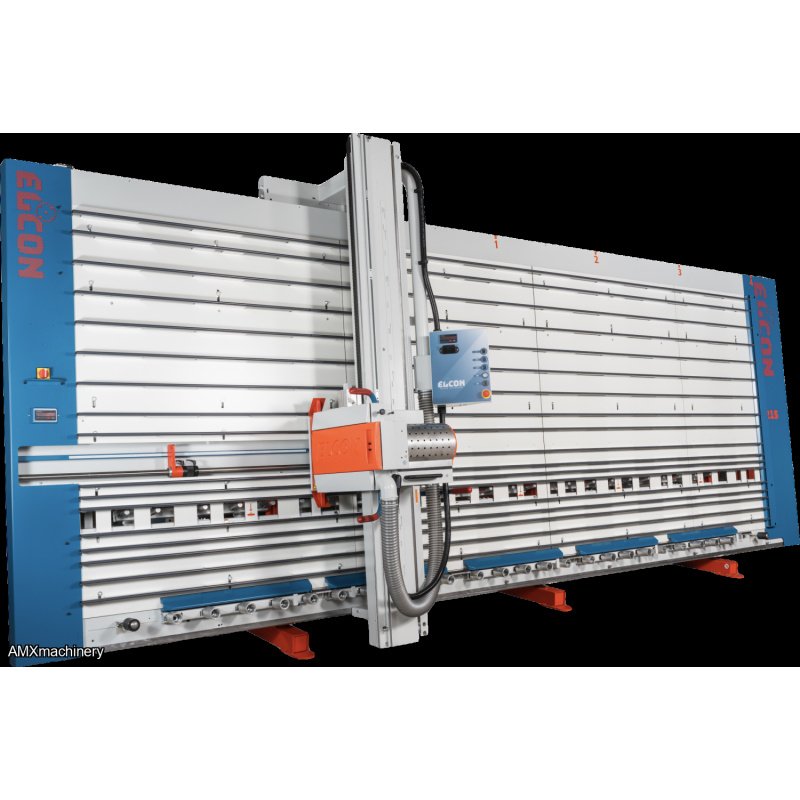

PARTE: 4EL-DSX - SIERRAS ESCUADRADORAS VERTICALES - ELCON - SERIE DSX
SERIE DSX-155
SERIE DSX-185
SERIE DSX-215
SERIE DSXL-155
SERIE DSXL-185
SERIE DSXL-215
SERIE DSX1/2L
SERIE DSX1/2L
SERIE DSX1/2L
|
Model & Dimensions (mm) |
155 |
185 |
215 |
|
Maximum cutting length |
3300 |
3300 |
4300 |
|
Maximum cutting height - Horizontal |
1505 |
1805 |
2105 |
|
Maximum cutting height - Vertical |
1550 |
1850 |
2150 |
Description:
The DSX models are designed for industrial use and have a large ouput capacity with e.g. increased cutting depth, pneumatic plunging and a motor rating upto 7.5 HP. A wide variety of accessories is available, such as many automatic functionalities and programming of cutting patterns.
Equipped with:
-1 meter point
4,0kW motor
Control buttons on saw-head
Options:
Motor 5.5 kW-S6 (DSX)
Variable rotation speed for 4.0kW motor
Variable rotation speed for 5.5kW motor (option O004)
Automatic shifting back frame (pneumatic)
Pneumatic mid fence
Pneumatic rotation of saw head
Pneumatic lifting transportrollers
Aluminium bottom rollers incl clamp
Pneumatic panel clamp
Pneumatic panel clamp (extra)
Extension to measuring stop
Cutting length 4.300 mm (type 185)
Cutting length 5.300 mm (type 215)
Digital read out horizontal
Digital read out vertical
Programmable vertical cutting
V-grooving set 90 degrees
Lubrication for non-ferro materials
Electro-pneumatic double cut scoring incl. compressed air curtain
Extra dust extraction at the right hand side in side panel
