ID: 282
Open
Description

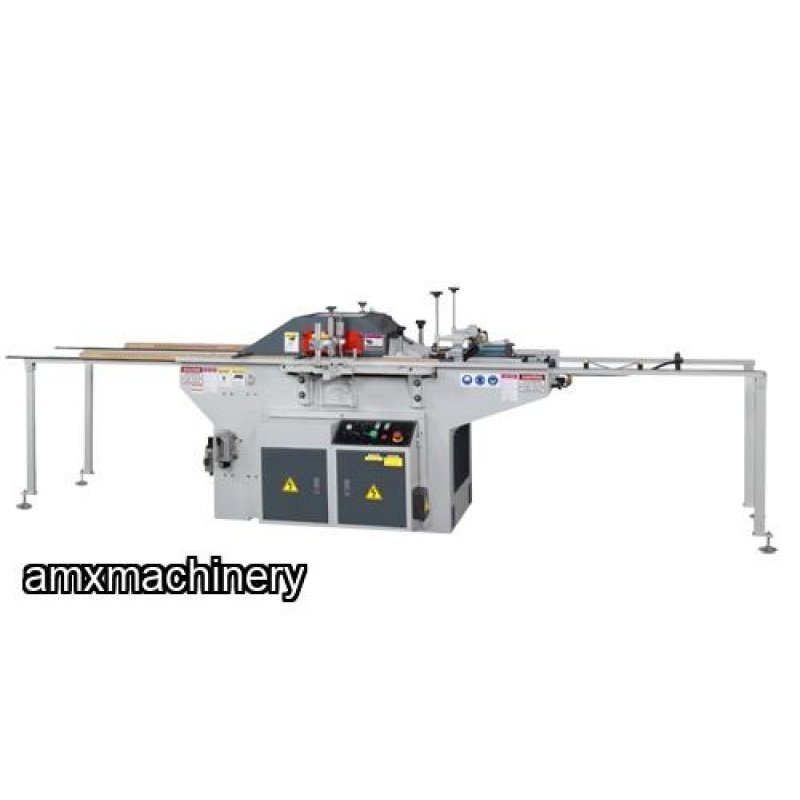

PARTE: 2TA-CM-200LG - PERSIANERA PARA HACER SHUTTERS
Features:
- A faster round louver groove mortise machine provides variable oscillating speed.
- Distance between the slot is controlled by the template.
- Two working tables built in both side of the machine to double the production for high efficiency mortising operation.
- Automatic pneumatic hold down clamps
- Fully automatic mortise produce cycles.
- Pneumatic pistons for drilling depth speed control, enable for best results.
- Depth of mortising is easily adjustable.
- Powerful industrial motor for maximum cutting capacity.
- Precision sealed long life bearing.
- Heavy cast iron frames and table for durability usage.
| Specifications | CM-200LG |
|---|---|
| Slot per Minute on 2 Working Pieces | 20 holes |
| Adjustable Slot | 0°~90° |
| Max. Depth of the Slot | 1" (30 mm) |
| Max. Size of the Working Piece | 4" x 5" (100 x 130 mm) |
| Min. Size of the Working Piece | 0.39" x 1" (10 x 30 mm) |
| Bits Rotation | 12000 RPM |
| Bits motor Power | 5 HP |
| Sliding Motor | 1 HP |
| Machine Size | 158" x 45" x 47" (4000 x 1140 x 1200 mm) |
| Packing Size (Packing Mold) | 118" x 4" x 2" (3000 x 100 x 40 mm) |
Packing Size(Packing Machine) | 83" x 45" x 55" (2100 x 1145 x 1400 mm) |
| N.W. | 1962 LBS (890 kg) |
| G.W. | 2315 LBS (1050 kg) |
