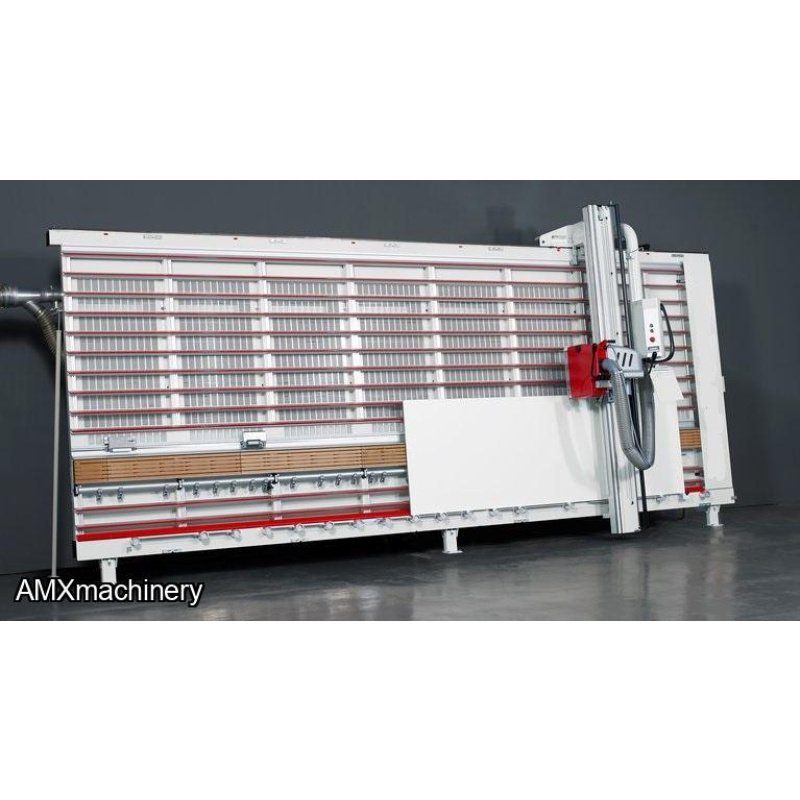

PARTE: 2ST-COMPACT-PLUS-TALL- 5207 - ESCUADRADORA VERTICAL - COMPACTA - CAP. 181” X 81” X 2-3/8”
Información del vendedor
AMXmachinery
- Registrado Desde:
- 03.03.2020 23:18:57
- Envienos sus comentarios
- n/a
- Ver otras Articulos
Descripción
PARTE: 2ST-COMPACT-PLUS-TALL- 5207 - ESCUADRADORA VERTICAL - COMPACTA - CAP. 181” X 81” X 2-3/8”
NUEVA CON GARANTIA
Motor 5 HP
• Swiss made quality for accuracy and durability!
• Y-axis digital measuring for horizontal cuts with kerf compensation for top down strip cutting
• One-piece fully welded frame, suitable for free-standing or wall-mount installation
• Heavy- duty support rollers with integral panel stop assembly
• Full length heavy-duty center shelf with moveable aluminum fingers
• Built-in wood small parts backing support across full length of center shelf
• Special measuring flip stop with “double-flip action” for use with small parts
• Automatic, mechanical, upward-shifting support grid to keep off-cuts from binding grid
• New, highly efficient dust system with hose enclosed in cable chain and can be run to either end of the frame;
additional port at far right end of frame; note: requires connection to a collector
• Cutting stations 40” apart (1 meter spacing available for purely metric shops-factory ordered)
• 5-1/4 hp, 3-phase motor with electric brake and noise level below 80dB
• 250 mm (9-7/8”) HFG (hollow face), 48T, carbide saw blade
• Template bar including six adjustable stops for setting common rip cuts
• Auto-engaging riving knife for safety
• “Telescoping” handle and tall panel plunge device for ease in cutting tall panels
Optional Accessories:
- VSA Scoring unit with 80mm carbide split scoring saw blades w/shims
- “Quick-set” shimless split-blade, infinitely adjustable scoring saw unit
- X-axis digital measuring stop (R to L) for vertical cuts with fine adjustment and five cut station reference points
- WSG Angle Cutting Device with “unipoint” system and fine adjustment to 1/10° for angle cuts to 46°. Storage box included.
- Locking rollers, foot pedal operation (factory ordered only)
- Snap-in aluminum small parts supports (pair) to support 8-15” tall pieces to keep bottom from kicking Out
- Repeat rip device with roller bearing & 25” capacity for top-down strip cutting
- Template bar stops for quick access to commonly set horizontal cut positions - (6) included
- New removable clipboard under control panel to hold cutlists, etc.
- Dado/Grooving kit including shroud, depth control
- Dado cutter - adjustable width (8-15mm) (5/16”-9/16”), carbide insert type with side scoring inserts for clean edges. Dado/Grooving Kit required.
- “OptiDivide” self-contained, independent optimization and label printer package including:
- Aluminum casing with integrated 12” touchscreen panel and stylus
- Zebra label printer in integrated and protected pull-out drawer in the casing
- Striebig cut optimization software package with one office network license
- WLAN network connection
- Power supply and cables for 110VAC
- Bracket to attach to specific model
- Operating and installation manual
