Descripción

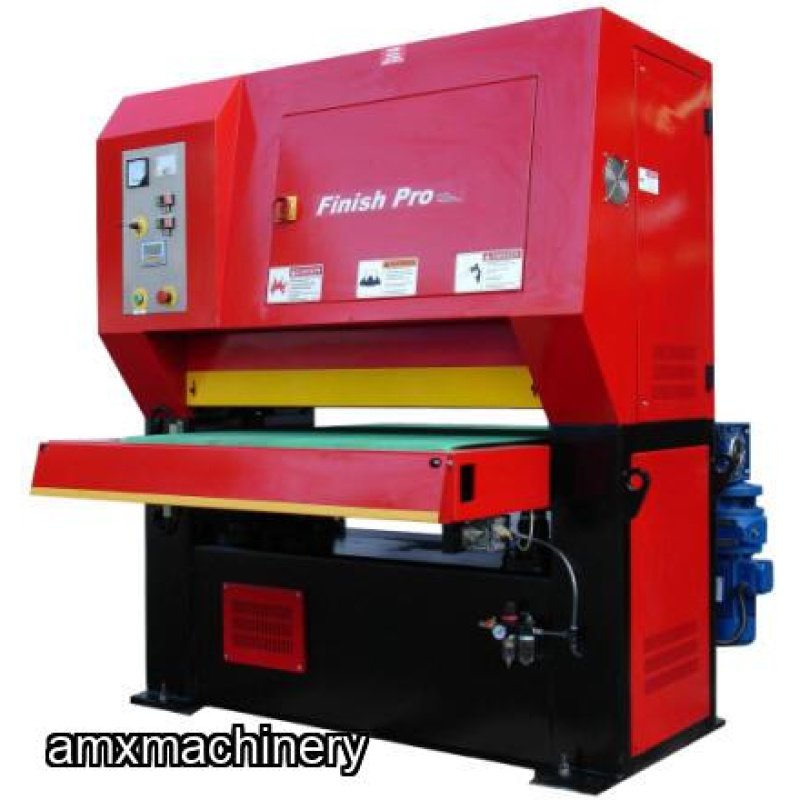

PARTE: 2MA-FP-5285 - LIJADORA - CALIBRADORA DE METAL - 52" ANCHO - 1 LIJA
NUEVA CON GARANTIA
Specifications: Model FP-2560 FP-4075 FP-5285
Sanding Capacity 24” x 6-1/8” 40” x 6-1/8” 51” x 3-1/2”
Abrasive Belt Size 25” x 60” 40” x 75” 52” x 86”
Contact Roller Size 8” Dia. 8” Dia. 10” Dia.
Passline Height 31” – 37” 31” – 37” 31” – 37”
Max. Thickness Capacity 6-1/8” 6-1/8” 3-1/2”
Conveyor Drive Speeds 8-40 FPM 8-40 FPM 8-40 FPM
Infeed Conveyor Length 20” 20” 20”
Dust Collector Capacity 1,100 CFM 1,800 CFM 2,800 CFM
Main Motor 10 HP, 230V , 3-Ph 15 HP, 230V / 460V, 3-Ph 30 HP, 230V / 460V, 3-Ph
Conveyor Motor 1 HP, 230V , 3-Ph 1.5 HP, 230V / 460V,3-Ph 3 HP, 230V / 460V,3-Ph
Table Lifting Motor 1 HP, 230V, 3-Ph 1 HP, 230V / 460V, 3-Ph 3 HP, 230V / 460V, 3-Ph
Net Weight, approx. 2,950 LBS 4,650 LBS 6,650 LBS
Machine Dimensions, LxWxH 55” x 63” x 69” 76” x 88” x 81” 89” x 98” x 93”
Video de la maquina funcionando: https://vimeo.com/185731014
Standard Features:
- Abrasive belt size: 52” x 86”
- 10”
diameter heavy duty drum for perfect graining
- 3-1/2” wide opening for max. workpiece thickness 6”
- Motorized Table Lift with LED display
- Variable Speed Conveyor
- Conveyor Forward & Reverse
- Belt Safety Over travel Switches
- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts
- 4-Jackscrew Table Support
- Double In feed & Out feed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
- Table Height Digital Readout
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose
- Air tensioning of belt for accurate tensioning & compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 82 dba
- Operation manual, control tags, danger signs, and warning labels.
- 208/230V, 3-Phase ( 440/460V is available )
- One year Industrial Warranty for parts.
NOT
- Total amps 120 @ 230/3/60
- COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
OPTIONAL: WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are not filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.
OPTIONAL ACCESSORIES
Model WDC-FP52 Wet Dust Collector # WDC-FP52, 5HP, 2,500CFM.. ..$ 11,950.00
Heavy Duty Ducting Package # HDDP-5285
