PARTE: 2CK-HR300PBX - REASERRADORA HORIZONTAL - 1 BANDA – CON REGRESADORA - 0°- 45° 30 HP – 12” ANCHO
AMXmachinery1
Description
PARTE: 2CK-HR300PBX - REASERRADORA HORIZONTAL - 1 BANDA – CON REGRESADORA - 0°- 45°
30 HP – 12” ANCHO
NUEVA CON GARANTIA

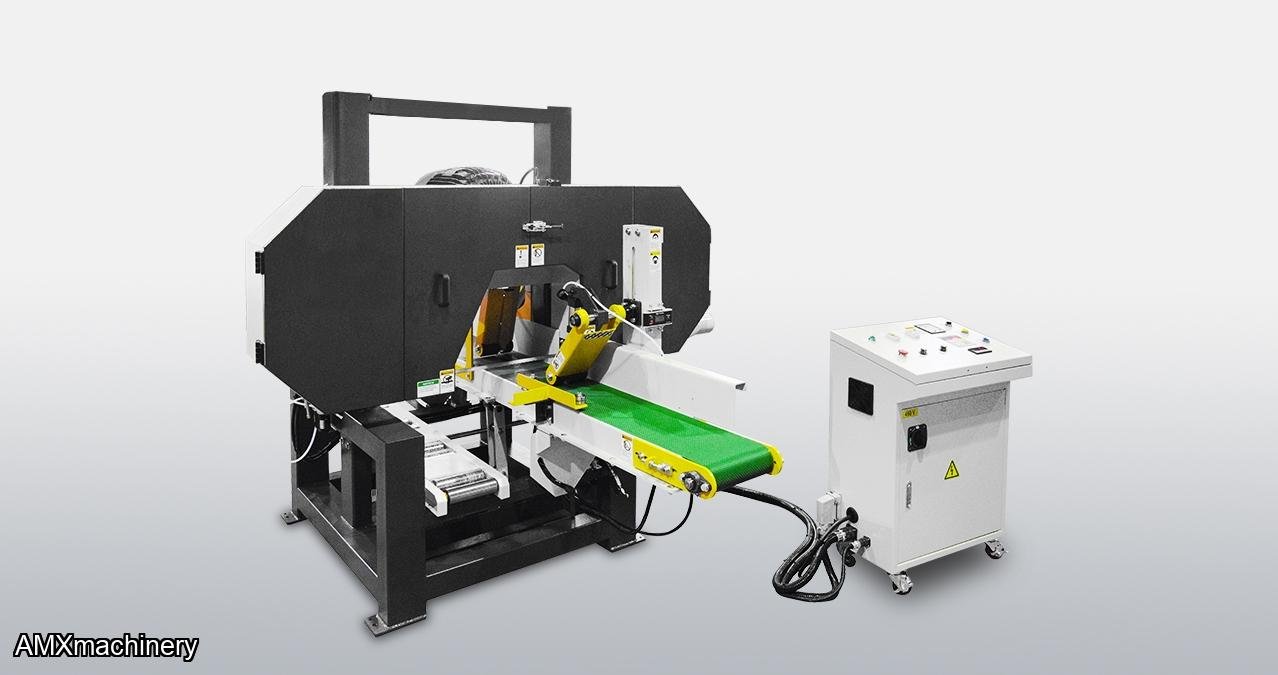

Is industrially built for demanding applications. The bed can be tilting from 0-45o making it ideal for bevel siding, moulding blanks, or millwork components. Capable of feeding up to 12” x 12” timber and cutting up to 10” thick. The powerful 30HP saw motor has a variable feed control allowing you to match the cutting speed to your blade & application requirements. The HR300PBX runs a 2” wide blade which runs on solid steel band wheels which are precision machined and balanced for a smooth cutting action. The precision sandwich style blade guides ensure the blade runs true for optimum cutting results. The thickness is conveniently adjusted using a precision motorized digital thickness control.

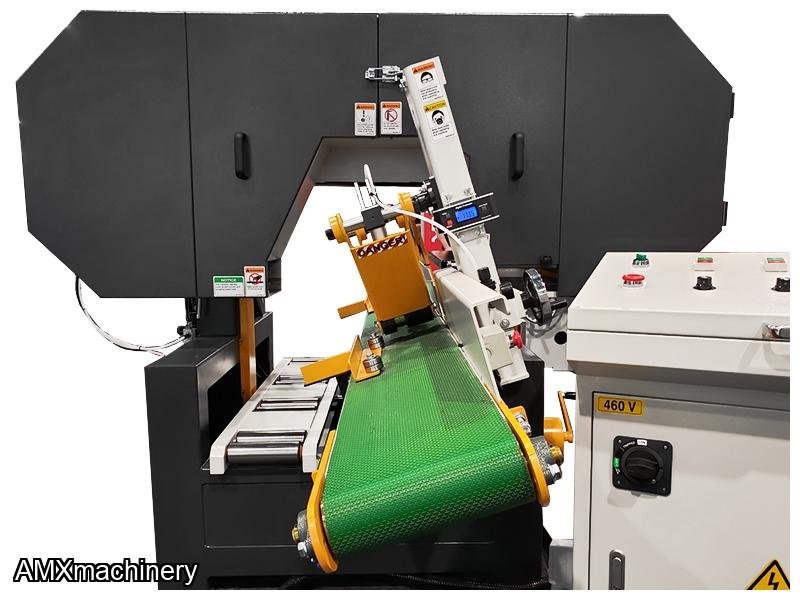

- Manually tilting feed belt for straight of bevel cutting from 0° – 45°
- Powerful 30HP saw wheel motor with variable speed inverter for precise blade speed setting according to your needs
- Heavy-duty tubular steel frame
- Motorized thickness (blade height) adjustment with digital position readout
- Hydraulic blade tensioning for optimum cutting results
- Precision sandwich style saw guide system with moveable left guide to move as close as desired to the material being cut for improved cut accuracy
- Air mist blade cooling system
- Mobile control panel with digital thickness control, ammeter, feed speed display can be positioned where the operator desires

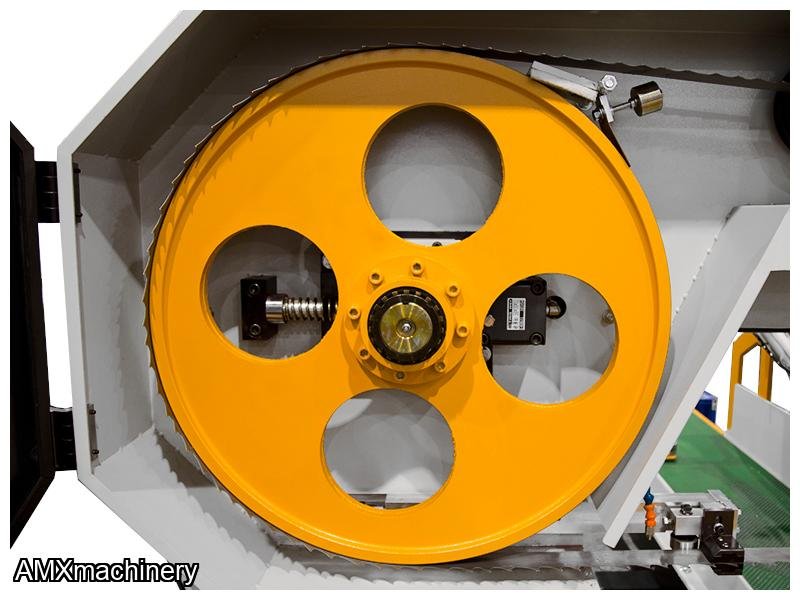

- Solid steel saw wheels – precision machined and balanced
- Pneumatic pressurized top hold down rollers on feed conveyor
- Heavy-duty infeed guide-fence on conveyor right including holdover system
- Idle roller return conveyor to return parts required additional machining
- Reinforced urethane conveyor belt for positive feeding and long life including
- Variable feed speed by VFD (frequency inverter)Y Delta – low amperage starter on the saw motor
- Electrical components to UL/CSA standards – 460/3/60 electrics
- Smooth infeed system (limit switch & timer 1 to 3 seconds) with timed pressure roller
|
Max. workpiece size |
12″ x 12″ |
305mm x 305mm |
|
Distance from blade to conveyor |
0.157″ – 9.8″ |
4 – 250mm |
|
Conveyor belt size |
11.2″ x 215″ |
285mm x 5470mm |
|
Machine wheel dimensions |
711 x 50mm |
28” Dia. x 2” Wide |
|
Main motor (Resaw wheels) |
30 HP |
|
|

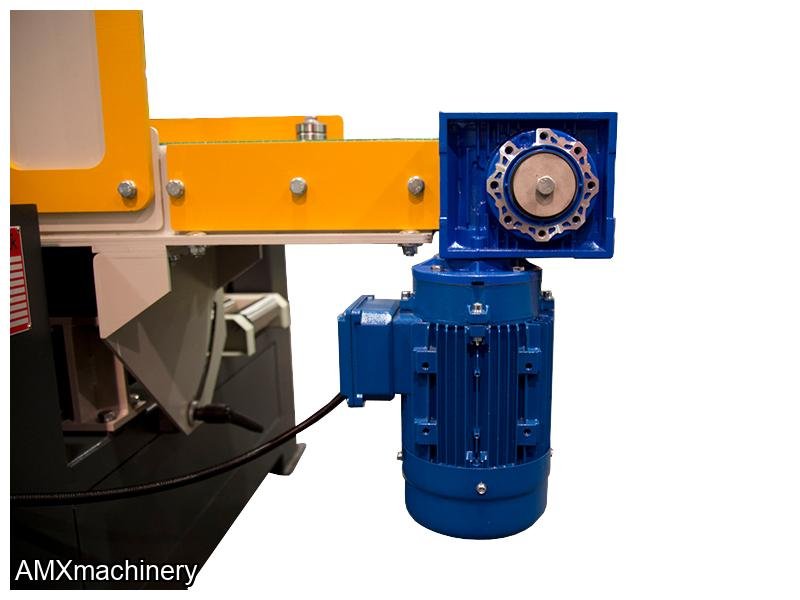

Conveyor motor |
3 HP |
|
|
Blade elevation motor |
¼ HP |
|
|
Variable feed speeds |
0~45 m/min |
0~148 FPM |
|
Dust hood diameter |
100mm x 2 |
4″ x 2 |
|
Saw blade size (Normal) |
180″ x 2″ |
|
|
Feed belts – bed angle |
0 ~ 45o |
|
|
Voltage – Stock machine |
460/3/60 electrics Total Full load AMPS 45 |
|
|
Machine weight |
3960 lbs |
3960 lbs (1800 kgs) |
|
Shipping weight |
4400 lbs |
4400 lbs (2000 kgs) |
|
Shipping dimensions |
113″ x 90″ x 85″ |
2850 x 2270 x 2160mm |
