Descripción

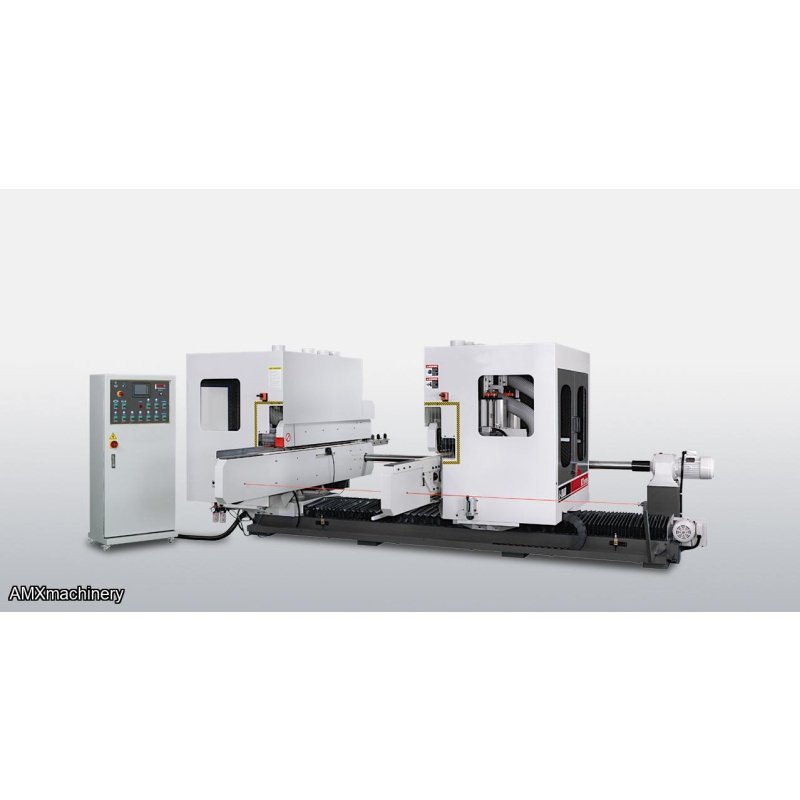

PARTE: 2CK-ECT SERIES - DOUBLE END TENONER - 8 CABEZAS - 141” ANCHO
They are available with up to (8) spindles (4-per side) and come in widths from 51” to 141”.
These double end tenoners are ideal for door, furniture, & window production and more.
The ECT series can be customized for your specific needs with a wide range of processing units and features.
The ECT are available as a stand-alone solution or can be purchased in a line for processing all four sides of a workpiece automatically.
- Configured with (6) or (8) spindles depending on your production needs
- Industrial cast iron machine base for superior vibration damping resulting in optimum cut quality and machine life
- Saw and moulding units can be orders with or without tilting
- Working widths from 51” to 141”
- Motorized width adjustment
- Precision chain track assemblies with manually retractable stop dogs to ensure perfect squareness
- Variable feed speed
- Safety equipment includes enclosed cabinet with safety interlocks on access doors
- Automatic braking of saw blades and moulding heads
- Digital readout for thickness adjustment
- Feed conveyor is equipped with needle bearings to increase wear-resistance. Choice of rubber or phenolic surfaces
- The movable side of the double end tenoner is mounted on precision linear guideways to ensure accuracy and smooth movement
- Width is set through the tough screen combined with a PLC to ensure high positioning accuracy
- Mechanical digital readouts for accurate positioning of each working unit
- Optional HSK and quick set tooling
ECT-86S | ECT-66S | ECT-46S | |
Max. working width | 2600 (3000/3600)mm | 2000mm | 1300mm |
Min. working width | 210mm | 210mm | 210mm |
Max. working thickness | 120mm | 120mm | 120mm |
Feed Chain Track | |||
Motor horsepower | 2 (3/5) HP | 2 (3/5) HP | 2(3/5) HP |
Feed speed | 5-25m/min | 5-25m/min | 5-25m/min |
Distance between dogs | 400(300/200)mm | 400(300/200)mm | 400(300/200)mm |
Movable Side Shifting System | |||
Motor horsepower | 1 HP | 1 HP | 1 HP |
Feed speed | 2m/min | 2m/min | 2m/min |
Scoring Saw System | |||
Motor horsepower | 2(3/5/7.5) HP | 2(3/5/7.5) HP | 2(3/5/7.5) HP |
Spindle speed | 3450rpm(60Hz) | 3450rpm(60Hz) | 3450rpm(60Hz) |
Spindle diameter | 25.4(30)mm | 25.4(30)mm | 25.4(30)mm |
Sawblade diameter | 120-305mm | 120-305mm | 120-305mm |
Main Saw System | |||
Motor horsepower | 5(7.5/10) HP | 5(7.5/10) HP | 5(7.5/10) HP |
Spindle speed | 3450rpm(60Hz) | 3450rpm(60Hz) | 3450rpm(60Hz) |
Spindle diameter | 25.4(30)mm | 25.4(30)mm | 25.4(30)mm |
Sawblade diameter | 205-355mm | 205-355mm | 205-355mm |
Moulding System | |||
Motor horse power | 5(7.5/10) HP | 5(7.5/10) HP | 5(7.5/10) HP |
Spindle speed | 3000/8000rpm | 3000/8000rpm | 3000/8000rpm |
Spindle diameter | 40mm | 40mm | 40mm |
Cutter diameter | 180-210mm | 180-210mm | 180-210mm |
Weight | |||
N.W. | 4350kg | 3900kg | 3500kg |
G.W. | 5000kg | 4750kg | 4200kg |
Dimensions | |||
Machine size (mm) | 4560x2360x1470mm | 3960x3260x1470mm | 3360x3260x1470mm |
Packing size (mm) | 4760x2280x1750mm | 4160x2280x1750mm | 3560x2280x1750mm |
