ID: 2284
Open
Description

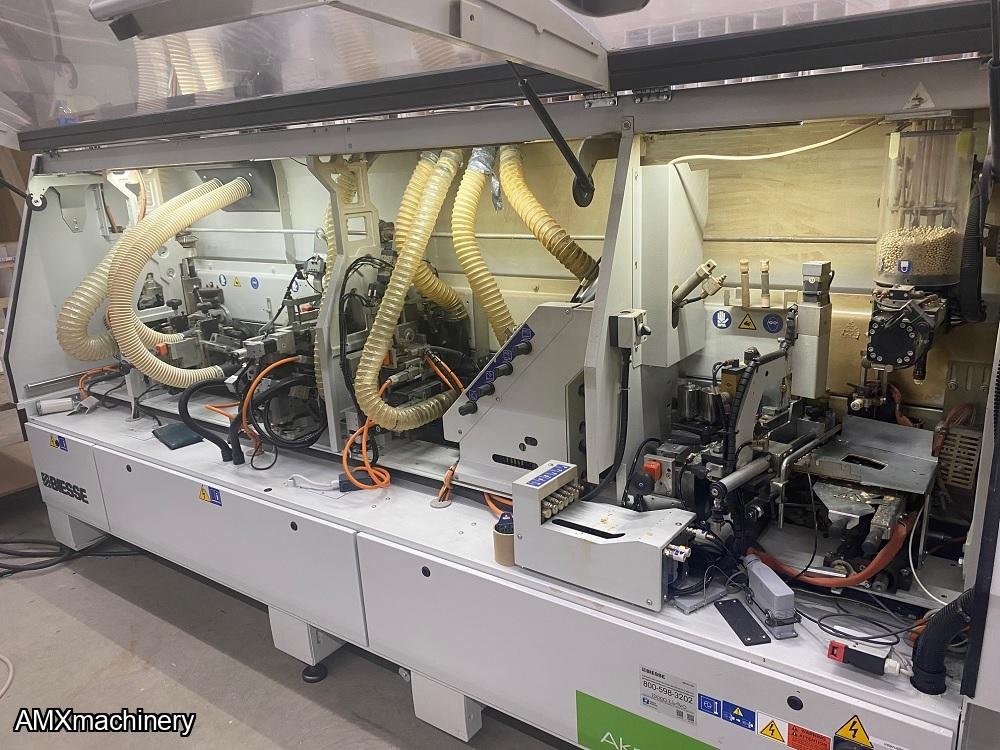

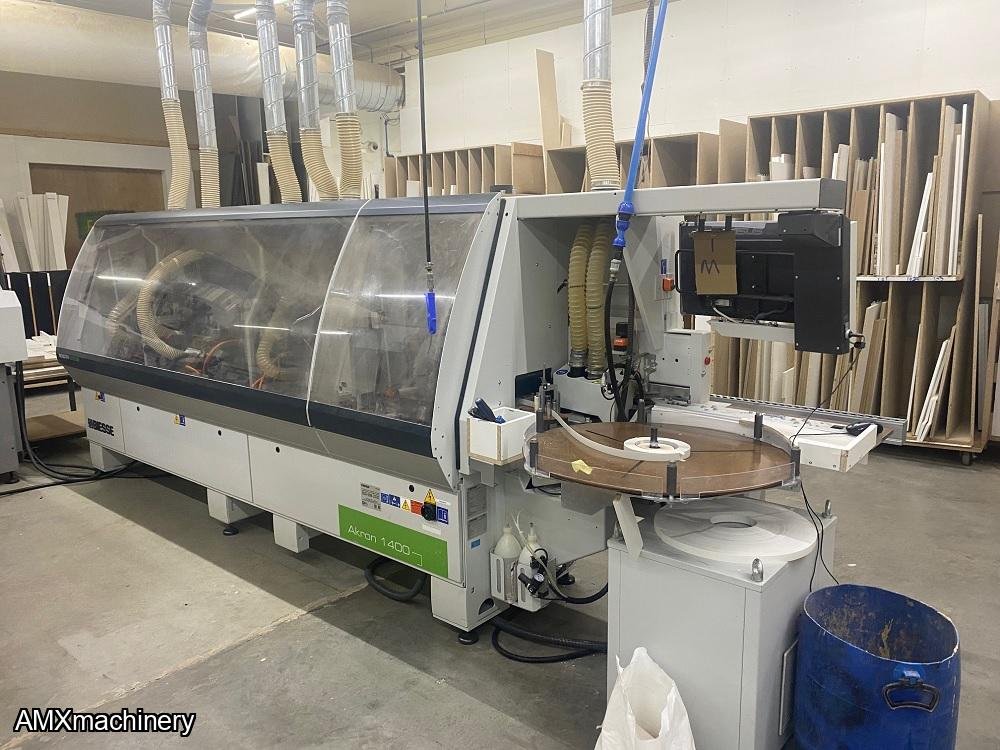

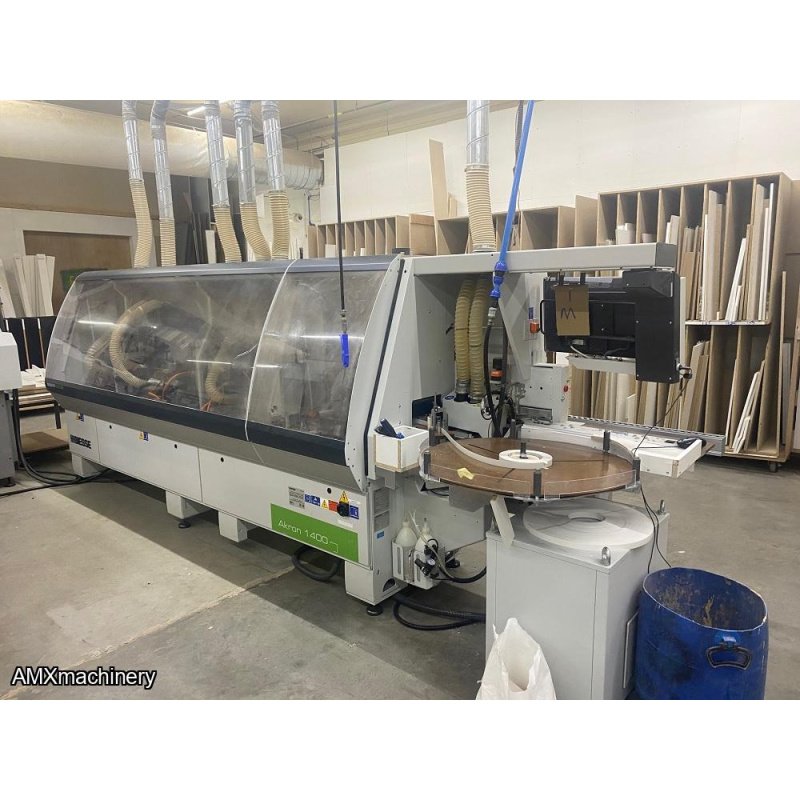

PARTE: 12527 - ENCHAPADORA DE CANTOS - BIESSE AKRON 1435A
USADA – MUY BUENAS CONDICIONES
Year: 2018
CAPABILITIES
-One-sided edgebander with glue pot

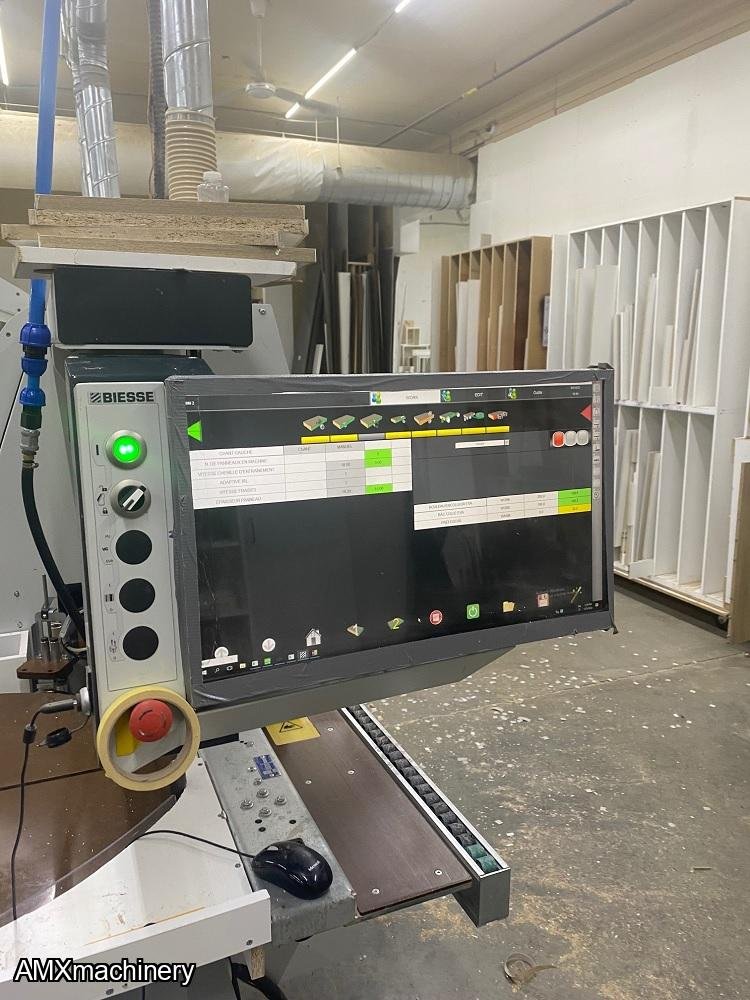

-CNC control and command system with TS10 digital controller, large ``touch screenLCD graphic display, WINDOWS CE operating system, USB port
-Chain drive and upper presser
-Group of pressure rollers
Workstation :
-Premilling
-Gluing unit with pellet pot

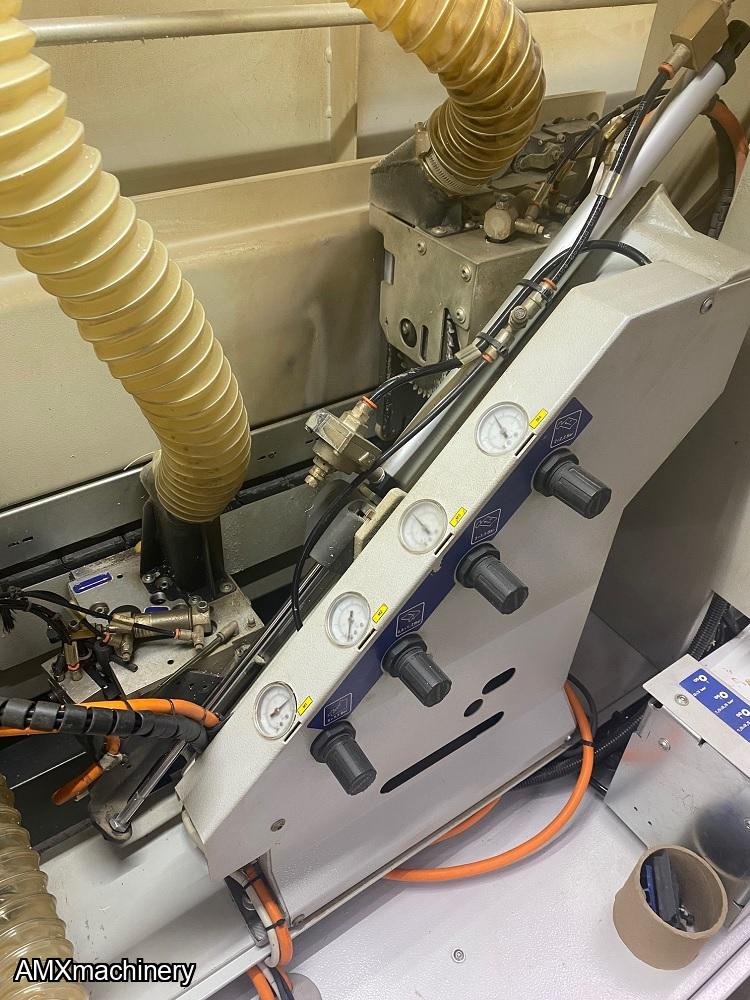

-Adjustable pneumatic pressure unit

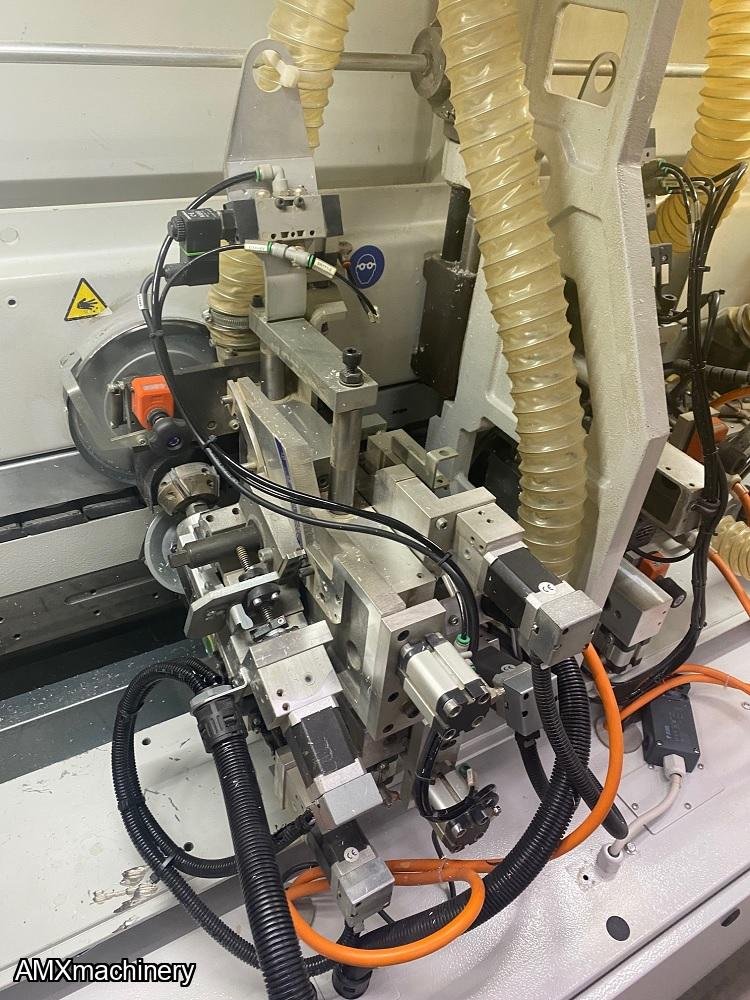

-End cutting unit 2 tilting saws 0-15˚ for bevel cutting, motor 0.50Kw

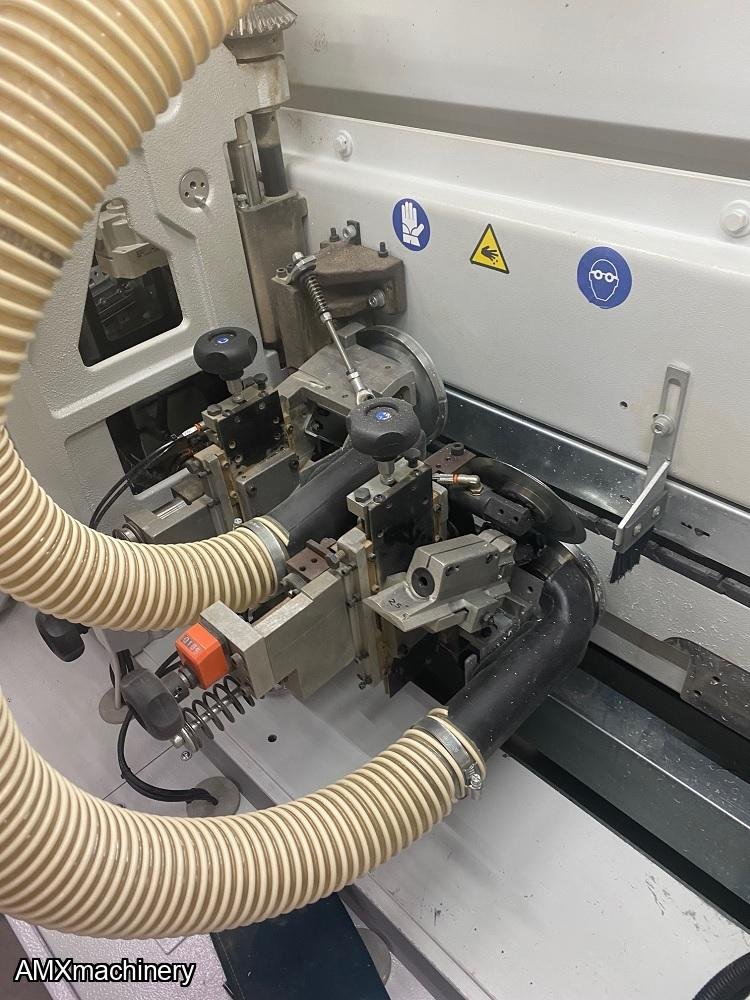

-Fine trimming top and bottom trimming unit, 0.65Kw motor
-Radius scraper unit for 3mm pvc finishing
-Polishing brush unit, 0.37Kw motor
Specifications:
-Minimum & maximum thickness of the part: 10 to 60mm
-Minimum width of the part: 85mm
-Minimum piece length: 140mm
-Tape thickness in roll: 0.4 to 3mm
-Thickness of the pre-cut wooden strip: up to 8mm x 45mm high
-Variable feed speed: up to 12m/min
-Edgebander length 16` and 6 inches
-Automatic start of the groups and motors foreseen in the program.
-2nd pass direct selection key.
-Management of 8 digital axes
-Lists of programs with manual and/or automatic launch.
-Diagnosis of errors with codes and comments.
-Statistical production data.
-This device is mounted on an adjustable suspended control panel
