Identificador: 1285
Abierta
Descripción

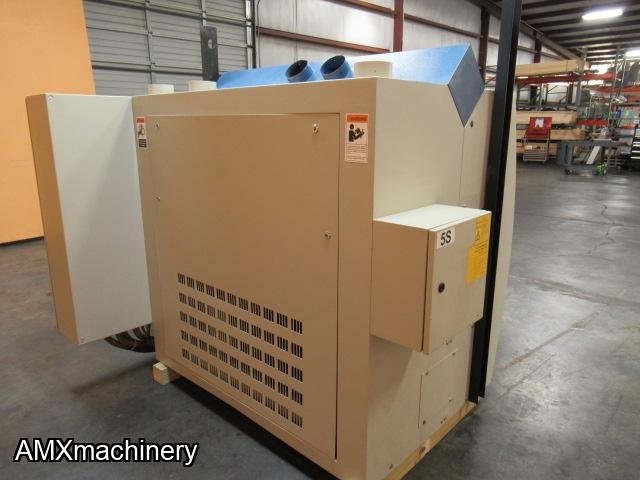

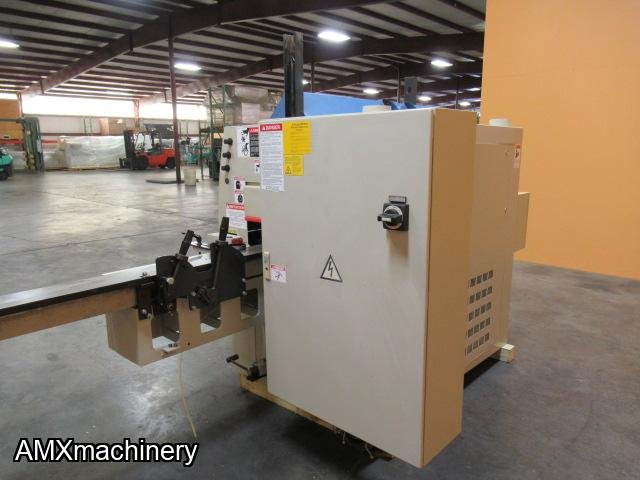

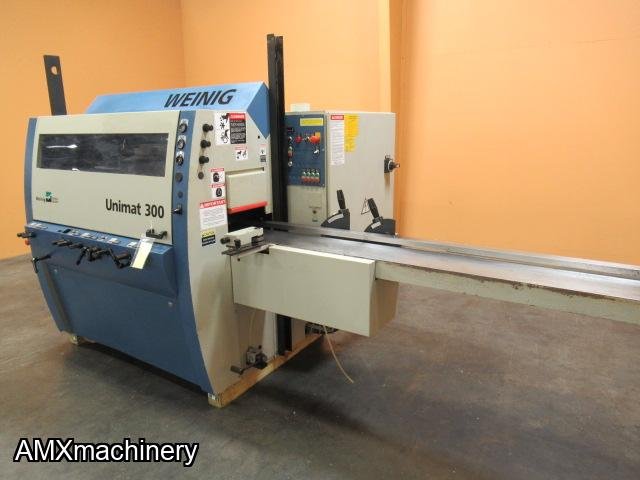

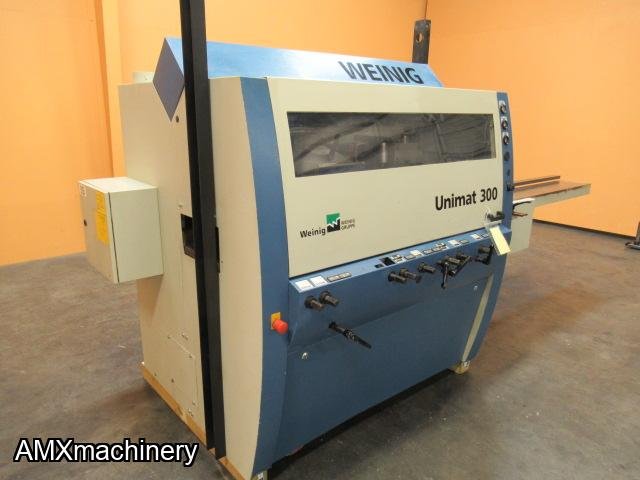

PARTE: 12252 – MOLDURADORA – 5 CABEZALES – 9” ANCHO – WEINIG
USADA – BUENAS CONDICIONES – LIMPIADA Y REVISADA

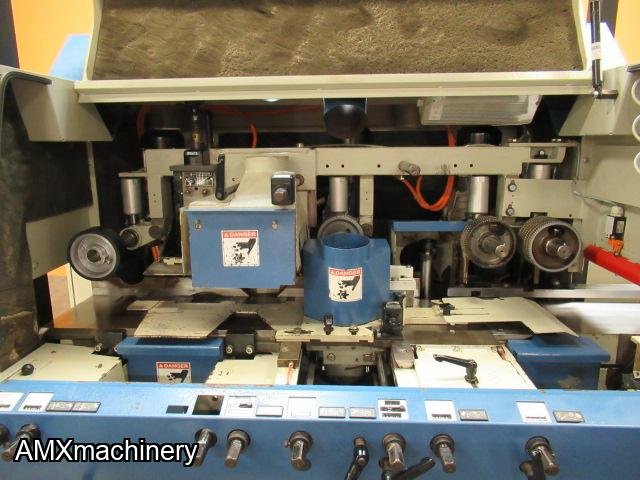

5-head machine
4-3/4" X 9-1/6" capacity

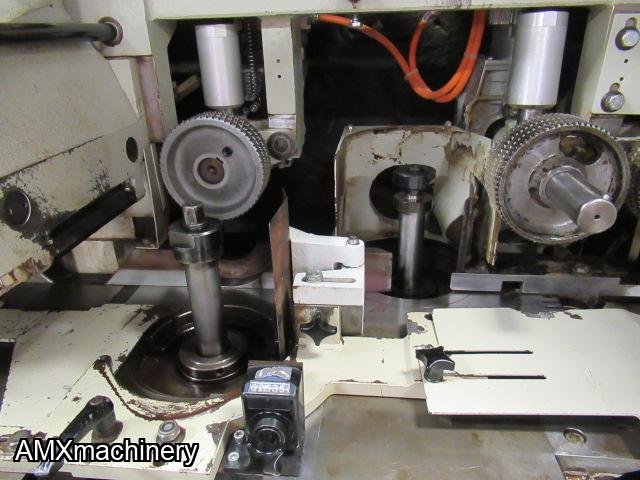

Spindle configuration: 7.5 HP bottom, 10 HP shared between right and left spindle, 15 HP top, and 10 HP bottom

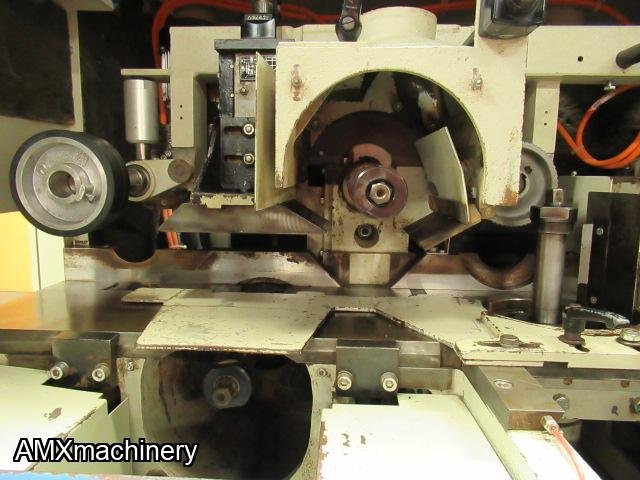

Spindle diameter: 1-1/2"
Variable speed feed 20 to 40 FPM
72" infeed straightening table

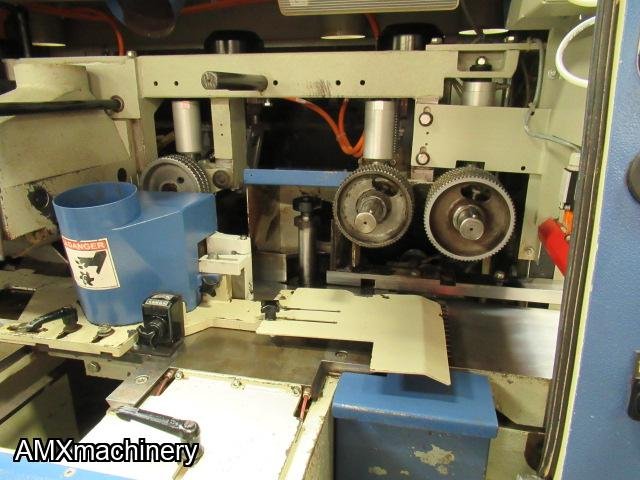

First feed wheel (before bottom spindle) pneumatic up/down

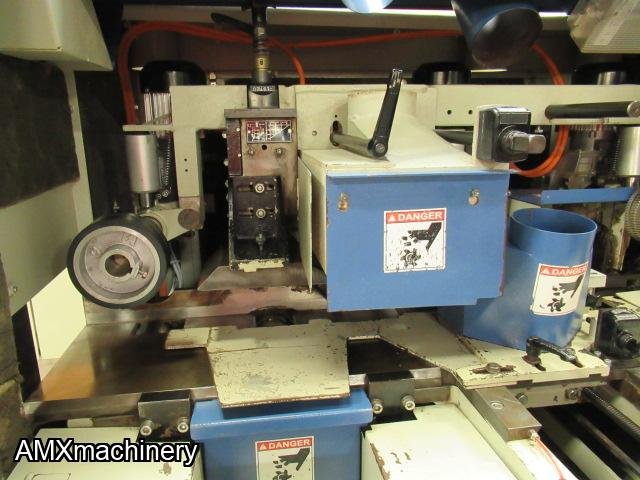

Central adjustment of top spindle chipbreaker and pressure shoe
Central adjustment of left spindle chipbreaker and left guide
DigiSet readouts for left and top spindle
One idle roller in the outfeed table
Motorized feed beam adjustment
Centralized lubrication
Manual waxilit pump

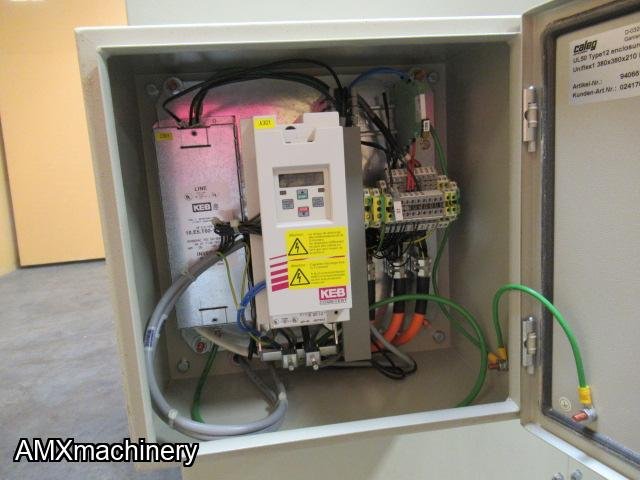

Electronic "Smart" spindle brakes
Set up stand
(5) 120 mm dust outlets

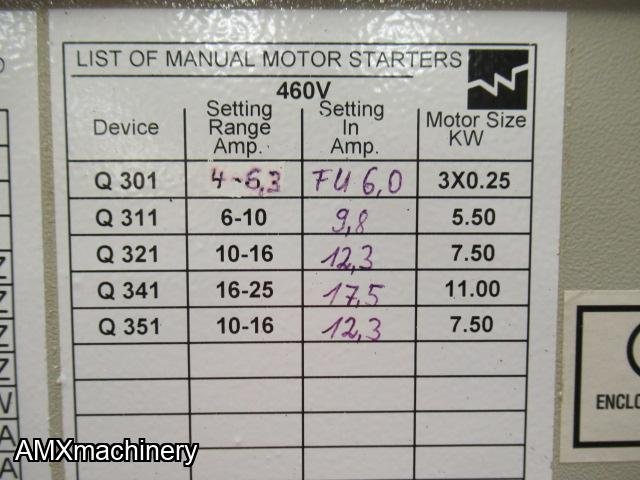

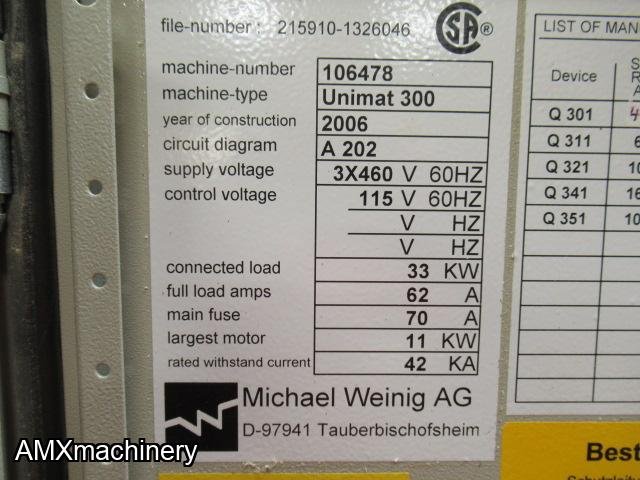

Electrical requirements: 62 amps @ 460 volt
NO tooling included
Mfg 2006
460V, 3 PH, 60 CY
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
