ID: 1745
Open
Description
PARTE: 2CK-3672DT

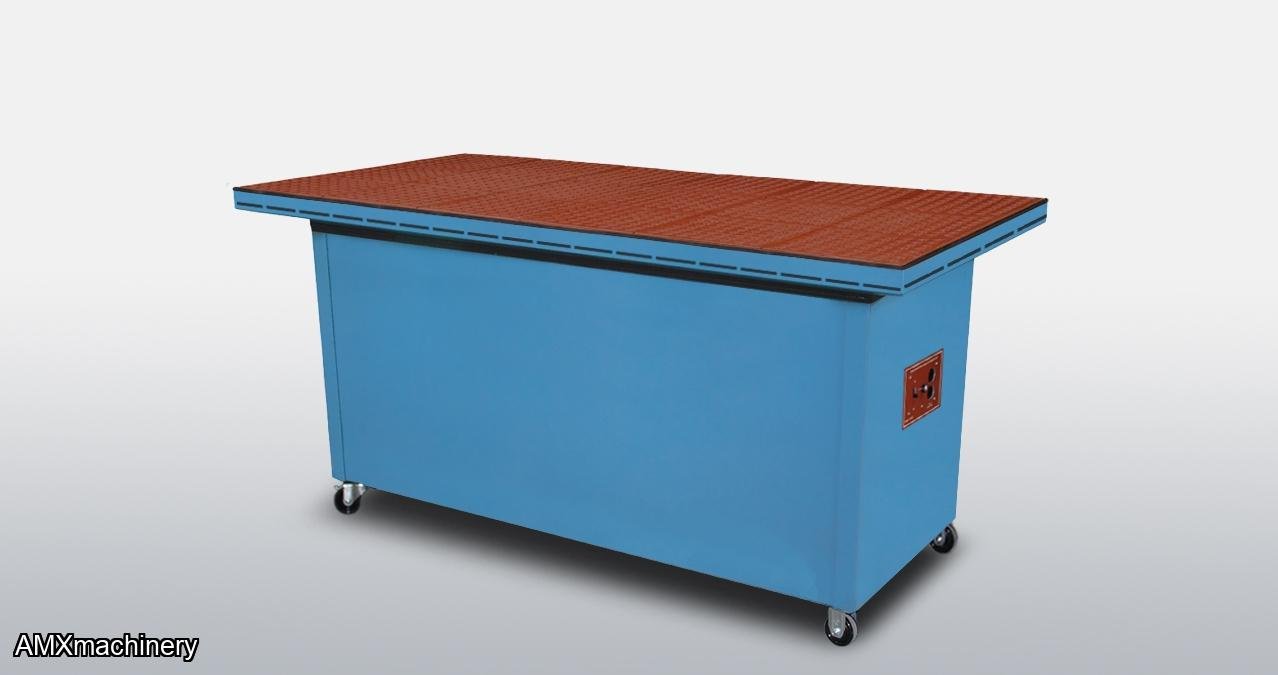

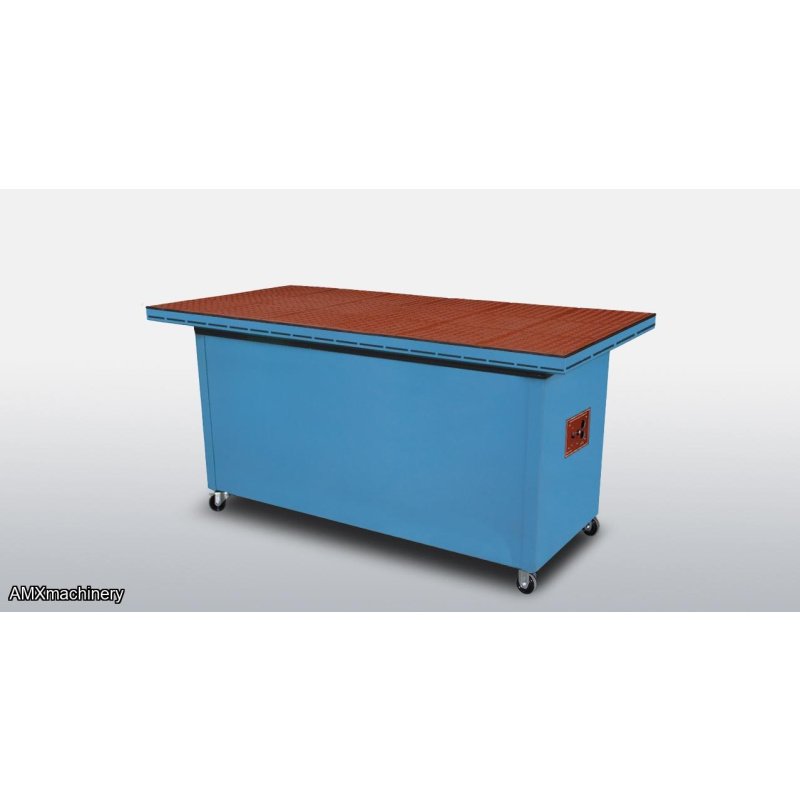

Ergonomic and energy efficient and offer easy operator maintenance. The table is mounted on wheels and can be easily moved around your shop. This is perfect for light to medium duty woodworking applications such as sanding and finishing.
- The most innovative and efficient downdraft dust collection tables on the market
- Innovative filter design acts as dust trays to capture 100% of collected dust particles
- Filters can be easily emptied, cleaned, and replaced in less than one minute
- The tabletop surface is accessible from 360o

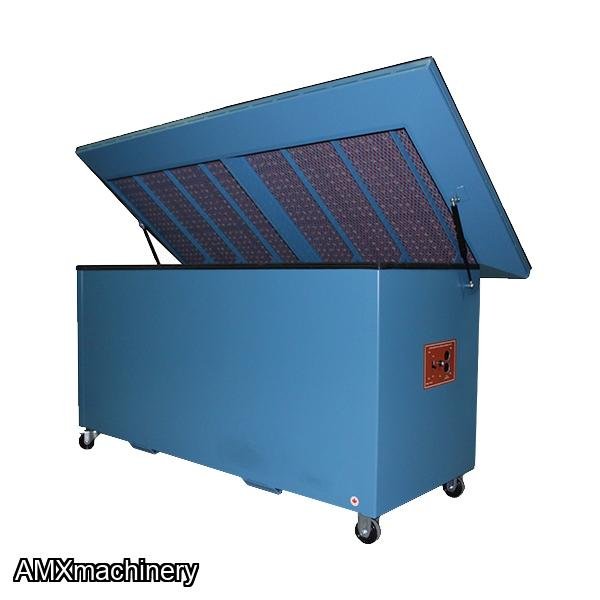

- The gas-cylinder assisted tabletop is fully counter balanced and auto-blocking for easy opening with one hand providing easy access to filters and inner chamber for maintenance
KEY FEATURES
- Indestructible high friction and non scuffing tabletop mats secure parts in place and protect work from being damaged during sanding operations
- Advanced self-opening tabletop offering immediate access to filters
- Extra high efficiency, dual inlet, direct driven blowers
- Innovative blower design requires 50% less horsepower
- Unique recessed base for workers comfort
- Super quiet blower design operating under 78dB
|
Table top dimensions |
36” x 72” |
|
Panel filter efficiency |
98% |
|
Blower motor HP |
2 x ¾ HP |
|
CFM |
2 x 1800 |
|
Sound pressure dB (at 10’) |
78 |
|
Module weight |
500 lbs. |
