Descripción

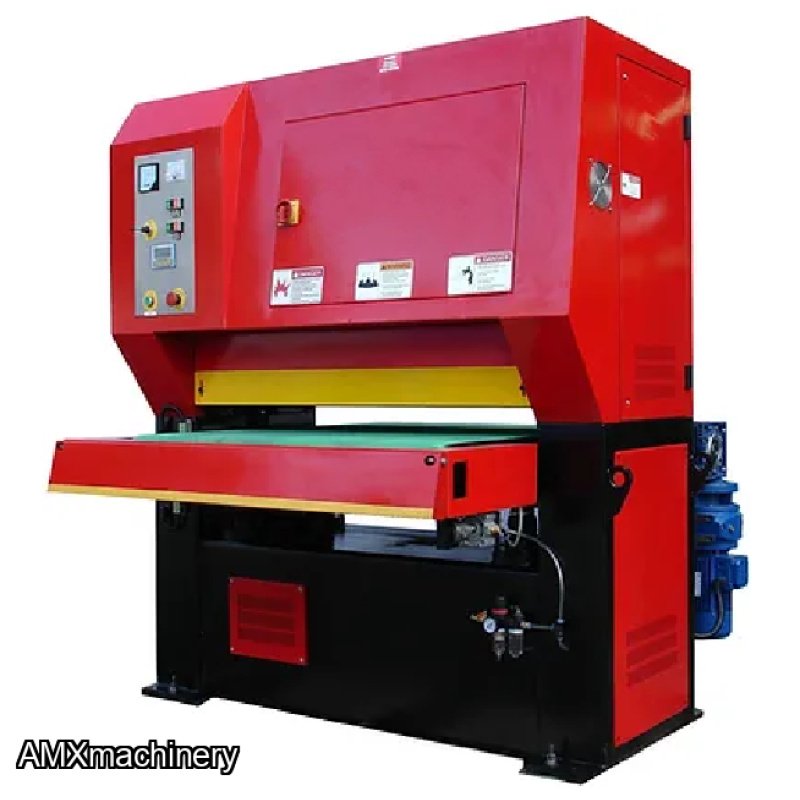

LIJADORA 63'' x 85'' 40 HP PARTE: 2GM-FP-6385
- Abrasive belt size: 63” x 85”
- 10” diameter heavy duty drum for perfect graining
- 3-1/8” wide opening
- Motorized Table Lift with LED display
- Variable Speed Conveyor
- Conveyor Forward & Reverse
- Belt Safety Overtravel Switches
- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts
- 4-Jackscrew Table Support
- Double Infeed & Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
- Table Height Digital Readout
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose
- Air tensioning of belt for accurate tensioning & compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 82 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230V, 3-Phase ( 440/460V is available )
| Max. Part Width | 63" |
| Abrasive Belt Size | 63" x 85" |
| Contact Roller Size | 10" Dia. |
| Passline Height | 31" - 37" |
| Max. Thickness Capacity | 3-1/8" |
| Conveyor Drive Speeds | 8 - 40 FPM |
| Infeed Conveyor Length | 20" |
| Dust Colector Capacity | 3,800 CFM |
| Main Motor | 40 HP, 230V / 460V, 3PH |
| Conveyor Motor | 3 HP, 230V / 460V, 3PH |
| Table Lifting Motor | 3 HP, 230V / 460V, 3PH |
| Net Weight, Approx. | 8,650 LBS |
| Machine Dimensions LxWxH | 79" x 95" x 83" |
