ID: 79
Open
Description

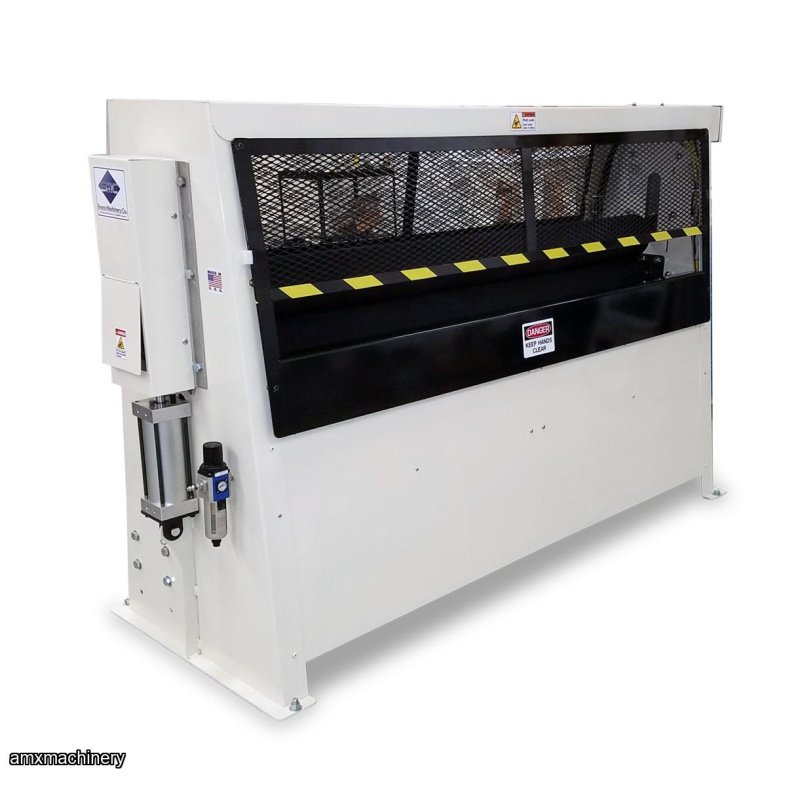

PARTE # EV-0257 – PICH ROLLER 62” - RODILLOS PLANOS - EVANS 0257
Pinch Roller 62" capacity
Solid top and bottom rollers for flat panel laminating
Safety Gates on In-Feed and Out-Feed
Solid Top and Bottom Rollers
Feed Rate: 50’ FPM
Maximum Width: 62”
Maximum Thickness: 2”
Work Height: 30-1/2”
(Optional Riser Available)
Drive Motor: ½ HP
Electrical: 120 V, 1 PH, 60 Hz (Options Available)
Air Requirement: 100 PSI
Crated weight 790 LBS. Shipping dimensions 85” long X 33” wide X 57” high
Options:
Variable speed control 0-50, ½ HP DC motor #01667
Custom Riser Base
220 volt 1 phase 50hz
Up to 4” roll opening
Payments & Returns
- Payment Methods
- Visa/Mastercard/American Express/Bank Transfer/Direct Debit
Post Message
Sign in to ask the seller a question.
AMXmachinery
MOULDER CUTTER HEADS - LENGHTS 2.25”, 3”, 4”, 5”, 6” - BORE 1-13/16” - BORE 2-1/8"
PART: 12305-E - MOULDER CUTTER HEADS - LENGHTS 2.25”, 3”, 4”, 5”,
6” - BORE 1-13/16” - BORE 2-1/8"WITHOUT BUSHING - BORE 2-1/8"
USED - VERY GOOD CONDITIONS
North American
Gladu hydro-lock
6 wing
20 degrees
Interior diameter (bore): 1-13/16”
External diameter: 6” (150 mm)
Lenght 2-1/4” (57 mm)
Lenght 3” (75 mm)
Lenght 4” (102 mm)
Lenght 5” (130 mm)
Lenght 6” (152 mm)
-500x500.jpg)
AMXmachinery
LIJADORA DE BANDA ANCHA – 43” ANCHO – 2 BANDAS
PARTE: 2NT-8-1100RC – LIJADORA DE BANDA ANCHA – 43”
ANCHO – 2 BANDAS
NUEVA CON GARANTIA
• Max Working Width: 1100mm / 43"
• Configuration: Roller-Combination Head
• Number of heads: 2
* 1st Head 8" 65 Shore Rubber Contact Drum
* 2nd Combination Head with 4" rubber contact drum with 65/70
Shore Platen
• Motor: 30HP
• Size of Sanding Belt: 43-3/4" x 75"
• Mechanical Variable Speed 16 - 47.2fpm
• Max Working Height: 150mm / 5.9"
• Feed Moto...
AMXmachinery
LAMINATE SLITTER
PARTE # 2EV-5010 - LAMINATE SLITTER - EVANS 5010Laminate Slitter, 6" capacity- 110 Volt, 1 Ph., 1/3 HP,Standard Features:- 6" capacity- 70 feet per minute- 3-blade system for inlay quality cuts- Self-aligning fence- Crated weight 240 LBS. Shipping dimensions 37” long X 24” wide X 29” highOptional:- 220 Volt 50 Hz (export)
AMXmachinery
ASTILLADOR DIESEL 22 HP
PARTE: 2EB-WP-22HP-D-SDS – ASTILLADOR DIESEL – 22 HP – MAX DIAMETRO 8”NUEVA CON GARANTIAPower: 22 HPEngine Make: Changchai 22HP Single Cylinder Diesel Engine w/ Electric Start Battery includedChipping Capacity: 8" DiameterFeeding System: Hydraulic Feed (Forward / Neutral / Reverse)Rotor Plate Size: 640mm (25.2")Rotor Plate Weight: 180 LbsBlade System: 1 Fixed Anvil Blade 2 Moving BladesOverall size: 136" L x 82" H x 60" WCrate Box Dimensions: 67" x 44" x 44"Feed Opening Size: 7.875" ...
