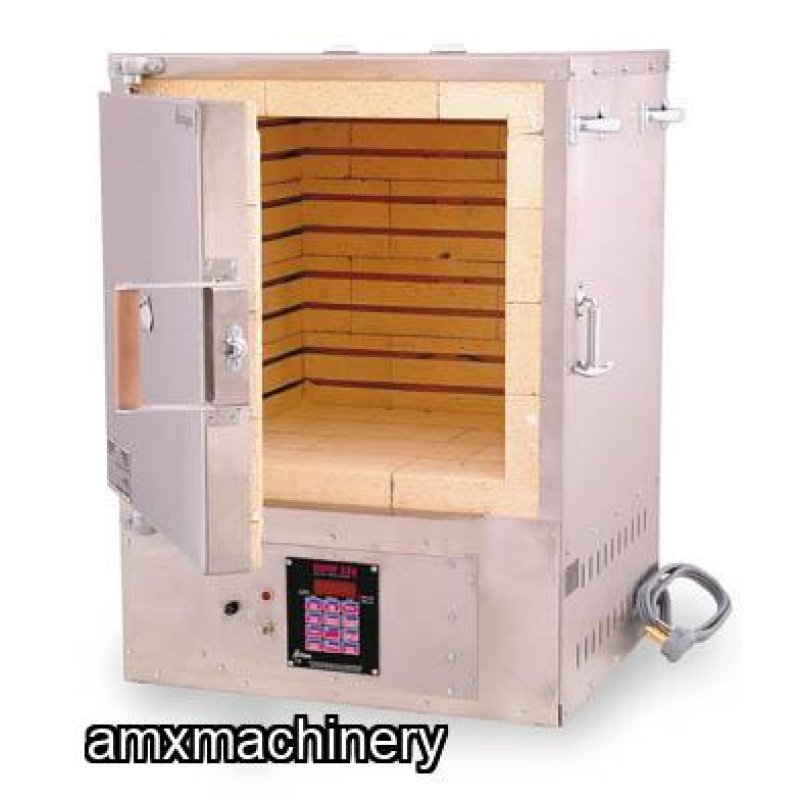

HORNO PARA CERAMICA, VIDRIO, METALES – 95 LITROS

PARTE: 2PG-W18 – HORNO PARA CERAMICA, VIDRIO, METALES – 95 LITROS

220V, 1 Fase, 4840 Watts, 22 Amps

Medidas interiores: 457 mm ancho x 457 mm fondo x 457 mm alto

Volumen interior: 95.43 litros

Max. Temperatura: 926 grados centígrados

Nuevo con garantía

Made of durable insulating firebrick. The digital controller saves time, makes casting more reliable, and gives consistently repeatable results. The 12-key Sentry controller has 3 built-in, easy-to-use programs. You can also enter your own programs for your exact needs. Included is an on-off toggle switch.



Has a heavy-gauge stainless steel case to resist corrosion. Heating elements are recessed to protect the element, yet the element is still accessible for easy replacement. This furnace also includes a top vent with ceramic plug for lost wax burnout. A spring door latch tightly seals the door while permitting easy opening with one hand for removal of hot flasks.



Designed for production

Paragon’s warranty is not affected by frequency of use. Fire your new kiln every day if you want, even in commercial settings. That will have no effect on the warranty period.



Specifications

Max. Temperature:  1700F - 926C

Amps:  22

Phase:  1

Watts:  4840

Nema:  6-30R

Breaker Size:  30

Circuit Copper Wire Size:  10 gauge

TUV tested to CSA and UL Standard 499 :  N

CE:  N

IMPORTANT:  Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type:  Sentry Digital 12-key Non-Ceramic

Voltage:  220

Hertz:  60



Kiln Type:  Front Loading Square

Sides:  4

Chamber Volume:  3.37 CU.FT. - 95.43 liters

Chamber Width:  18.00 IN - 457 mm

Chamber Depth:  18.00 IN - 457 mm

Chamber Height:  18.00 IN - 457 mm



The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size:  24.00W x 27.00D x 31.00H Inches  (610W x 686D x 787H mm)

Ship Size:  34.00W x 34.00D x 43.00H Inches (864W x 864D x 1092H mm)

Ship Weight:  320.00 Lbs. - 145.15 Kg.



OPTIONS:

- Sentinel Controller, optional on new kilns

- Wax Tray and Grate
