HORNO PARA CERAMICA, VIDRIO, METALES – 201 LITROS

PARTE: 2PG-TNF243 – HORNO PARA CERAMICA, VIDRIO, METALES – 201 LITROS

240V, 60 Hz, 48 amps, 1 fase

Crystalline Glazes, Decals, Low-Fire Ceramics, Porcelain and Stoneware

During busy seasons when orders are backlogged, you will be grateful you own a dependable Paragon kiln such as the TnF-24-3. Studio owners call these kilns “real work horses.”

Have withstood years of abuse in school environments. High school ceramics teachers fire these kilns unmercifully, without remorse. Yet the kilns keep going. People swear by them.

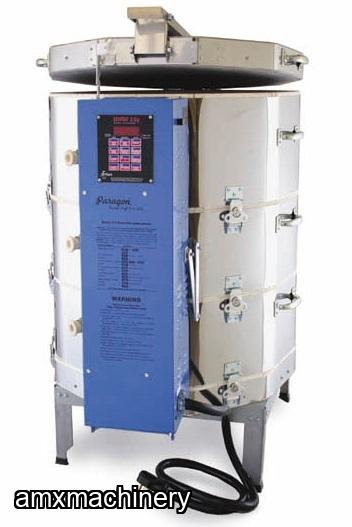

The TnF-24-3 features sectional construction. Separate the kiln bottom and sections to repair bricks, change elements, or to move the kiln down narrow stairwells or through the narrowest doorways. Twist-lock spring latches hold the assembled collars securely.

The top row of brick in the TnF-24-3 is 2” high and without element grooves. It is less susceptible to damage during loading than a grooved brick.

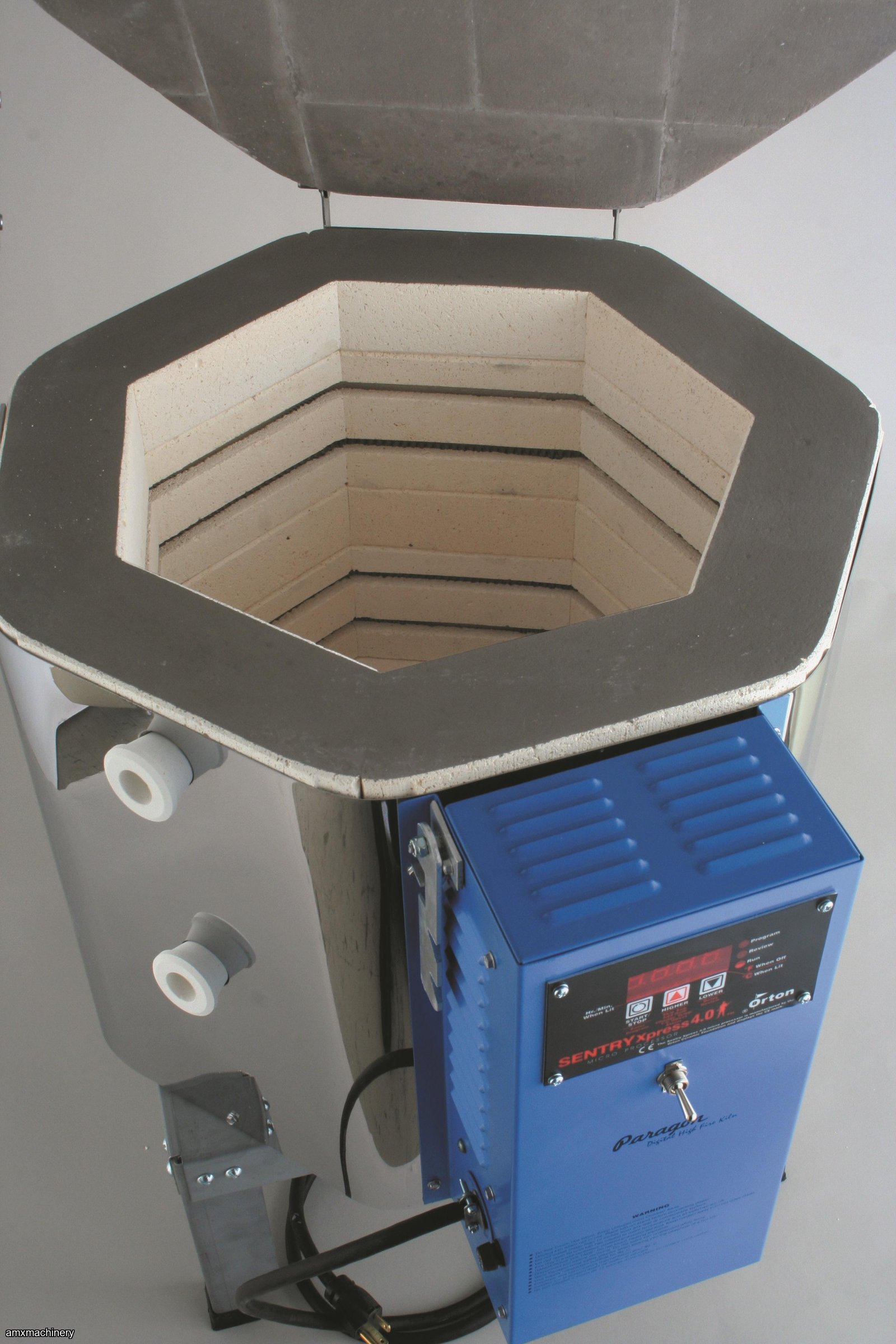

Hinged at the bottom, the switch box on 8, 10 & 12 sided digital Paragon kilns opens forward for easy maintenance. A folding support arm holds the box in the open position. (See photo on cover.) The Sentry is mounted at the top of the switch box within easy reach. Operate it from a comfortable position.

The 10-sided TnF-24-3 comes in deluxe 3” thick sidewalls, lid and bottom. The 3” brick is 20% thicker than the standard 2 ½” brick. For porcelain or stoneware, order the TnF-24-3, rated to 2350°F.

The massive lid is easy to lift patented “LiteLid,” which does away with cumbersome pulleys and cords and reduces lid weight to only several pounds of pressure. Most people can lift the lid with one hand. Unlike pulleys and weights, the LiteLid is self-contained on the kiln. No need to drill holes in the ceiling for pulleys. The LiteLid sharply reduces wear between the lid and top rim of firebrick. The truss and floating lid allow expansion of the lid. Ask competitors if their lid spring includes a truss and floating lid.

The 24” wide stand for 10 & 12-sided kilns supports the brick bottom with framing that is 4 ½” wide across the top of each side. The stand is rock-steady, with 16-gauge frame and heavy 12-gauge legs.

If you move your TnF-24-3 kiln out of the way when not in use, order an optional deluxe kiln stand with steel casters.

Something to consider if you already own a 12-sided kiln: Why purchase a 10-sided kiln such as the TnF-24-3 when you produce enough ware to fill a 12-sided kiln? It is because some ware fires more efficiently in a 10-sided kiln. Example: 10- and 12-sided kilns both fire four 10” wide bowls per shelf. When you own both sizes of kilns, you can choose the most efficient kiln for each size of ware. The 10-sided kiln is a good choice for those whose production depends on short firing cycles. Since 10-sided kilns are smaller than 12-sided, they can heat and cool faster. The 10-sided shelves are lighter than the 12-sided, and easier to lift.

A heavy galvanized steel base covers the reversible brick bottom completely. It folds up under the stainless case on all sides to strengthen the firing chamber. This is one more assurance that your Paragon kiln is built to last.

You will be amazed at the convenience of digital firing. The reliable solid-state Sentry controller continually monitors the firing so you can spend your time productively without closely watching the kiln. (Please remember, however, to check the kiln during firing and to monitor it near the expected shutoff time.) The sealed touch pad keeps out dust and is easy to wipe clean.

The controller has powerful features that you will enjoy using. Yet we have also worked hard to make the controller user-friendly.

Do you ever wonder how much electricity your kiln uses? The digital controller can figure this for you with the press of a button. Find out how little a kiln actually costs to fire. Learn to conserve energy by experimenting with firing speed, load density, etc.

Other Features

2”-high blank bricks in the top row of sidewall bricks

Sectional design for easier maintenance and moving through narrow passageways

Sections secured with deluxe twist-lock spring latches

Lock-in lid support

Large, tapered peepholes

Ventilated switch box

Hand lifts

Dropped, recessed brick grooves—no pins needed

Heavy duty elements

Dust-free coating in the peepholes, both sides of the lid and top rim of firebrick

Heavy gauge stainless steel case

Operating instructions silk-screened on the switch box

Certified to CSA & UL Standard 499

Full-formed galvanized steel base plate

SPECIFICATIONS:

Max. Temperature: 2350F (1287C)

Amps: 48

Phase: 1

Watts: 11500

Nema: 6-50R

Breaker Size: 60

Circuit Copper Wire Size: 6 gauge

TUV tested to CSA and UL Standard 499: Yes

CE: No

Kiln Type: Top Loading Round

Sides: 10

Chamber Volume: 7.10 CU.FT. (201.05 litres)

Chamber Width: 22.50 IN (572 mm)

Chamber Depth: 29.00 IN  (737 mm)

Outer Size: 30.50W x 43.80D x 48.00H Inches (775W x 1113D x 1219H mm)

The external kiln height includes a 9.5" tall stand.

Ship Size: 36.50W x 41.50D x 47.00H Inches (927W x 1054D x 1194H mm)

Ship Weight: 342.00 Lbs. (155.13 Kg.)

This Kiln Ships Via Truck

OPCIONAL:

The Furniture Kit

The furniture kit consists of carefully selected fireclay shelves and posts for this particular model. When estimating the price of the kiln, include the cost of furniture. The furniture allows you to stack multiple layers of ware. Without it, you could fire only the ware that would fit on the kiln bottom.

S-24-3, SnF-24-3, TnF-24-3, Viking-24 Furniture Kit

8 C-23H 1/2 Shelves (20” round x 3/4”)

1 1/2” wide Square Posts, 8 of each -

1”, 2”, 3”, 4”, 5”, 6” lengths

1 lb. Bag Kiln Wash

Furniture Shipping Weight: 94 lbs.
