ID: 1867
Open
Description

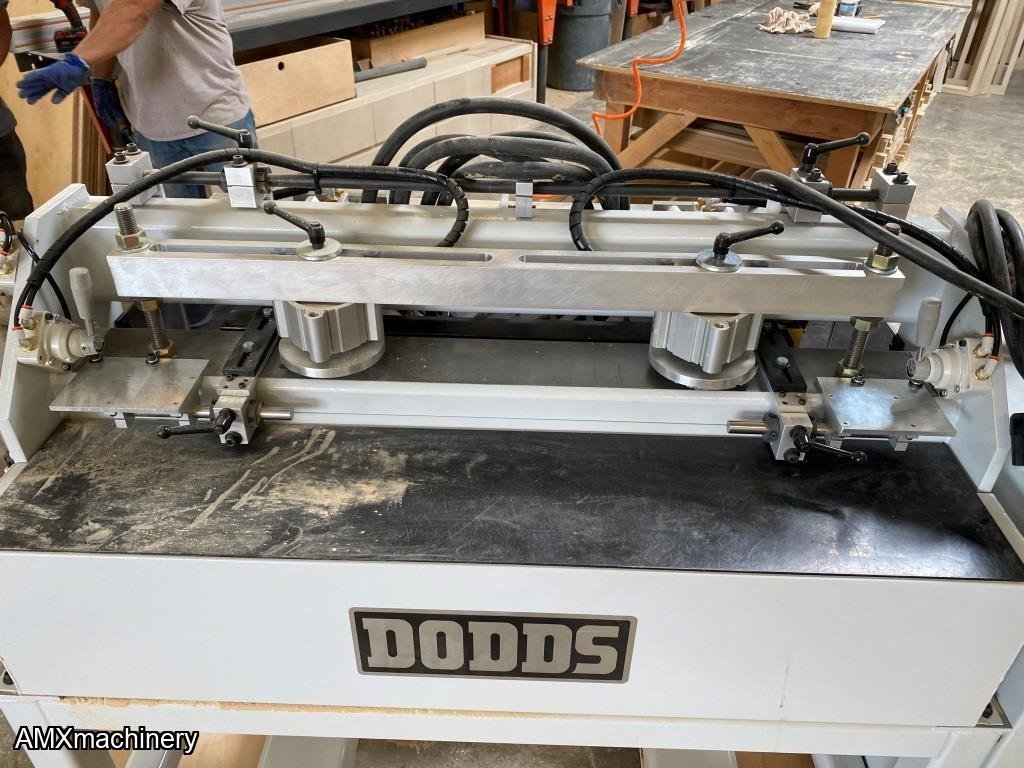

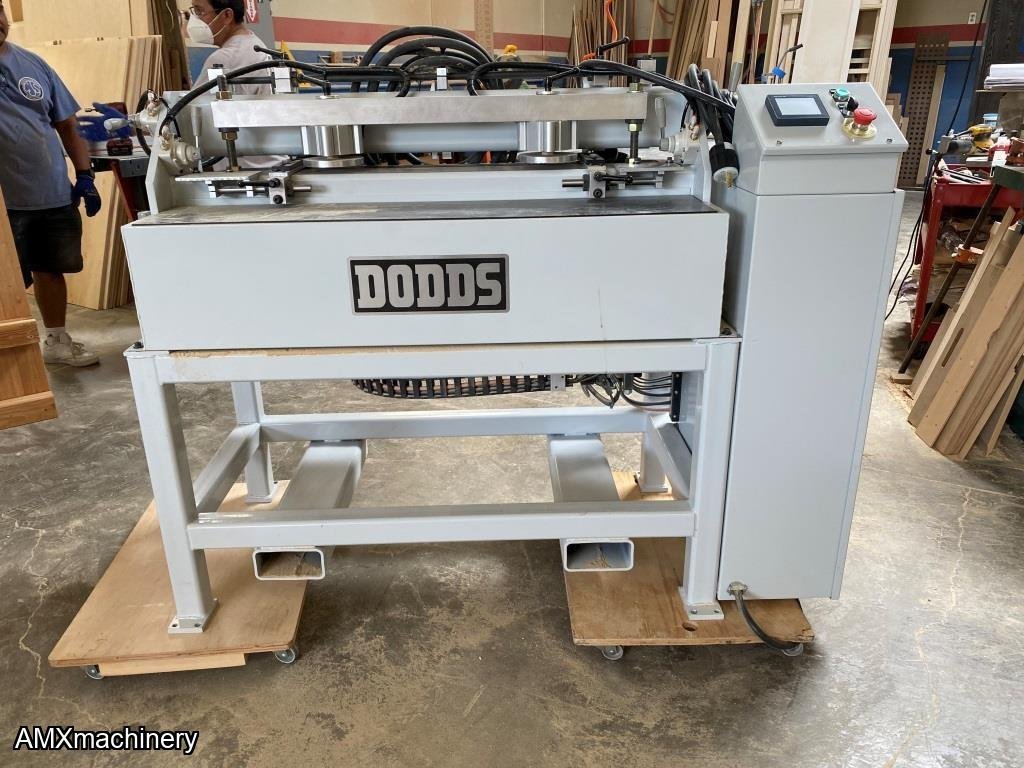

PARTE: 12369 - ENLAZADORA DE CAJONES - DODDS
MUY BUENAS CONDICIONES - COMO NUEVA
Brand: Dodds
Model: SE-1-25AF
Condition: Very Good
Year: 2019
Voltage: 220/1/
Condition: Very Good
With automatic feed of the cutter for dovetailing standard English dovetails on one or two inch centerlines.
Servomotors control the automatic feed with the consistency and reliability of servo components.
Simple operation
Spindle movement controlled by servomotors.

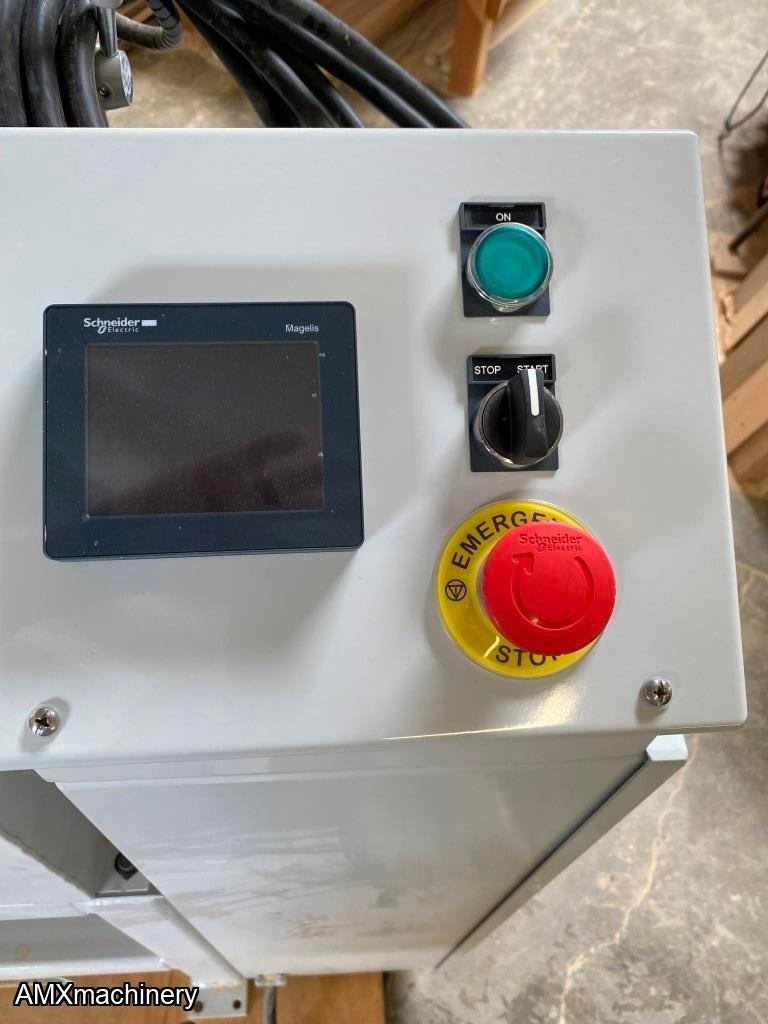

Touch screen operator interface.
Servo controls for consistency.
Independent pneumatic clamping.
High frequency spindle motor.
Tool comp. for resharpened cutters.
25” capacity.
Dust guard w/ 2” outlet.
Chipbreakers.
Number of spindles: 1 -HP: 3 -RPM: 24,000
Pneumatics: 70 psi minimum
Dust Collection: 2”
Outlet -Electrical: 220V, 1 phase 25 Amps
Size: 54”W x 21”D x 51”H
Weight: 602 lbs.
Drawer Height: 1-1/2” - 25”
Material Thickness: Drawer fronts, backs 3/8" - 2"; Drawer sides 3/8" - 3/4"
