ID: 430
Open
Description

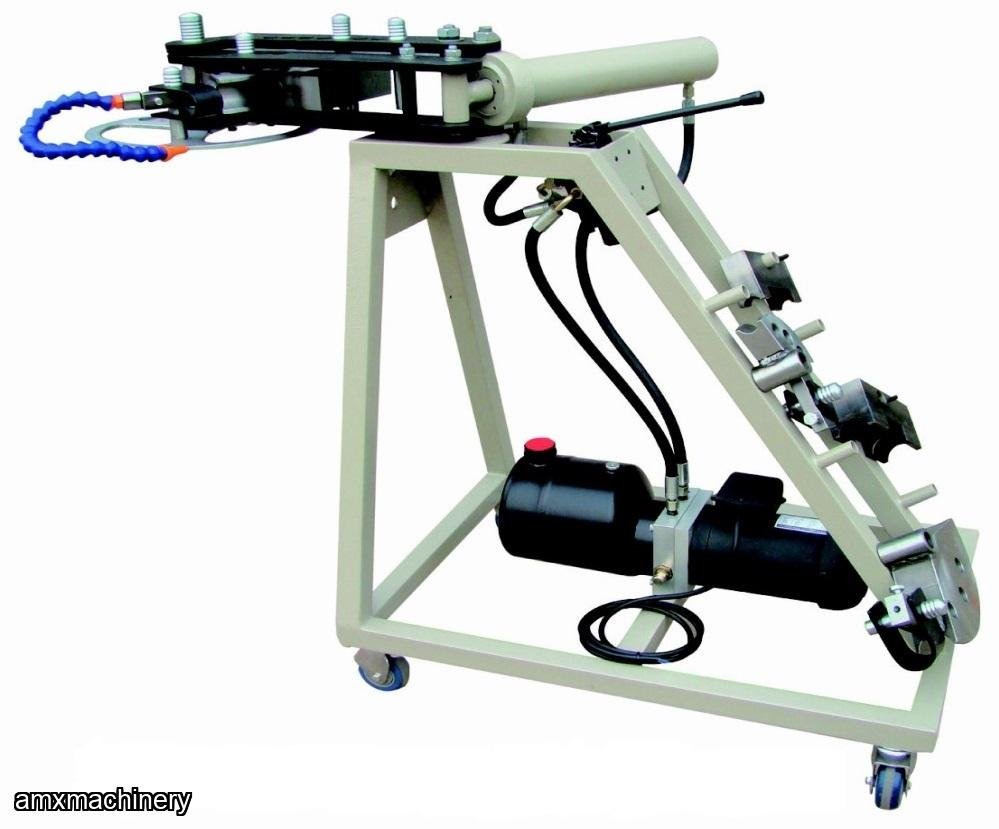

PARTE # 2MA-HTB-2 - DOBRADORA DE TUBO HIDRAULICA
Nueva con garantia
- Bends up to 2"schedule 40 pipe (1.54")
- Dies available in 120 and 240 degrees
- Dies and all Pins are heat treated
- Bronze bushings at Pivot Points
- Capabilities greater than benders costing 3 times as much
- High quality components and cosntruction
Tube Dies: 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", 1-3/4", 1-5/8", 2" for 120 degrees for radius 120 and 240 degrees
Pipe Dies: 3/4", 1", 1-1/4", 1-1/2" for Radius 120 and 240 degrees
Weight: 110 lbs ( 50 kg) only includes3 sets dies
Comes with (3) free dies: 1”, 1-1/2” and 1-3/4” with 120 degree for tubing
Optional Packages of dies available:
Package 1 for round tubing: part # PKG1-HTB2:
¾” x 3” radius, 240 degree or 120 degree
7/8” x 3” radius , 240 degree or 120 degree
1” x 3” radius , 240 degree or 120 degree
1 ¼” x 4” radius , 240 degree or 120 degree
1 ½” x 5” radius, 240 degree or 120 degree
Package 2 for round tubing: part # PKG2-HTB2:
¾” x 3” radius, 240 degree or 120 degree
7/8” x 3” radius , 240 degree or 120 degree
1” x 3” radius , 240 degree or 120 degree
1 ¼” x 4” radius , 240 degree or 120 degree
1 ½” x 5” radius, 240 degree or 120 degree
2” x 6” radius, 240 degree or 120 degree
Package 3 for round tubing: part # PKG3-HTB2:
1” x 3” radius , 240 degree or 120 degree
1 ¼” x 4” radius , 240 degree or 120 degree
1 ½” x 5” radius, 240 degree or 120 degree
1 5/8” x 5” radius , 240 degree or 120 degree
1 ¾” x 6” radius, 240 degree or 120 degree
Package 4 for round pipe: part # PKG4-HBT2:
¾” x 3” radius, 240 degree or 120 degree
1” x 4” radius , 240 degree or 120 degree
1 ¼” x 5” radius, 240 degree or 120 degree
1 ½” x 6” radius , 240 degree or 120 degree
