Description
COLECTOR DE POLVOS - 10 HP - 2CK-DBS10
Is a high efficiency indoor dust collectors generating up to 5000 CFM and are available in 10HP or 15HP . Equipped with a low RPM (1750 RPM) blower is designed to run much quieter than other high RPM units. The 1-micron filter bags ensure optimum air filtration and can be manually shaken to for cleaning. The large 168 gallon self dumping collection bin comes on casters and can be conveniently lifted by a fork lift and tilted to dump the wood waste in to your larger waste bin. A pneumatic lever is used to lift the sleeves connecting the system to the dump bin which saves time and effort.
- 10 HP blower motor generating 5000 CFM @ 8” WC
- Low RPM blower (1750 RPM) generating only 80 dB

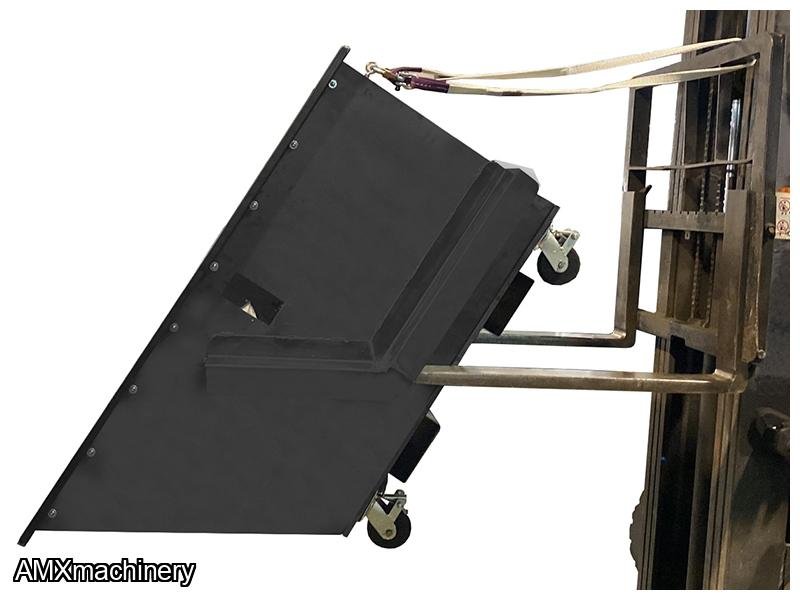

- Convenient self-dumping bin with 168-gallon capacity
- Compact design is ideal for a small to mid sized shop looking for a stand alone or a larger shop looking to add a secondary dust system.
- High efficiency 10HP TEFC motor
- Heavy gauge steel construction for long durability
- Self dumping bin allows operator to quickly, safely, and conveniently dispose of wood waste
- 14” main inlet diameter
- Pneumatic raising / lowering of dust sleeves to connect system with dump bin for added convenience
- High efficiency 1-micron filter bags (24 pcs)
- Manual shaker system for cleaning of filter bags
- Magnetic starter included
- Dust collector comes disassembled
Blower motor | 10 HP |
CFM Capacity | 5000 CFM @ 8” WC |
Filter information | 1 Micron Filter Bags: 8” dia. x 63” long x 24 pcs |
Filtration surface (sq.ft) | 263 sq. ft |
Inlet diameter | 14” |
Sound rating (Decibel) | 80 dB |
Disposal capacity | 168 gallons |
Machine dimensions (LxWxH) | 102” x 42.5” x 122” |
Shipping dimensions | Blower = 46” x 40” x 37” @ 616 lbsFrame / Bin / Accessories = 69” x 46” x 49” @ 880 lbs |
Electrical information | 230/3/60 @ 28 amps |
