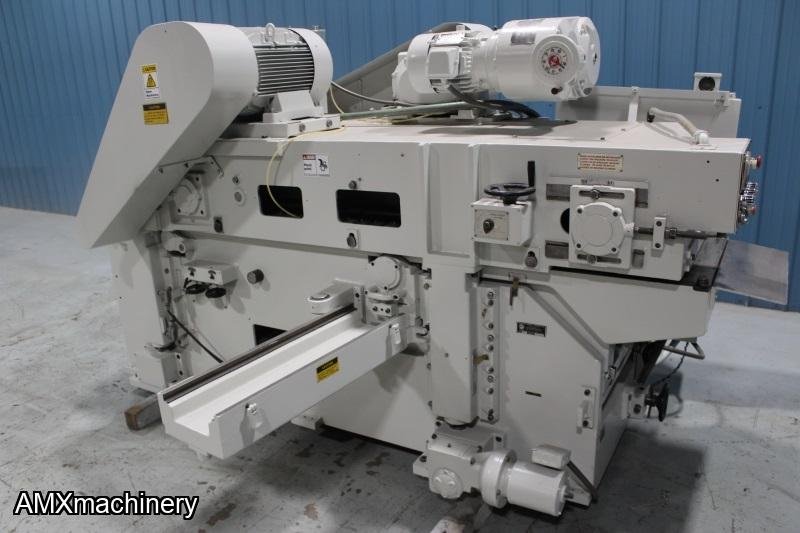

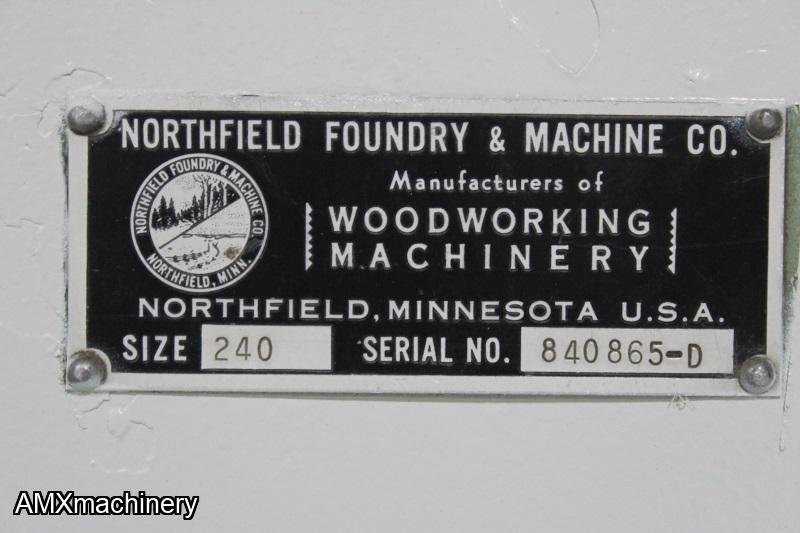

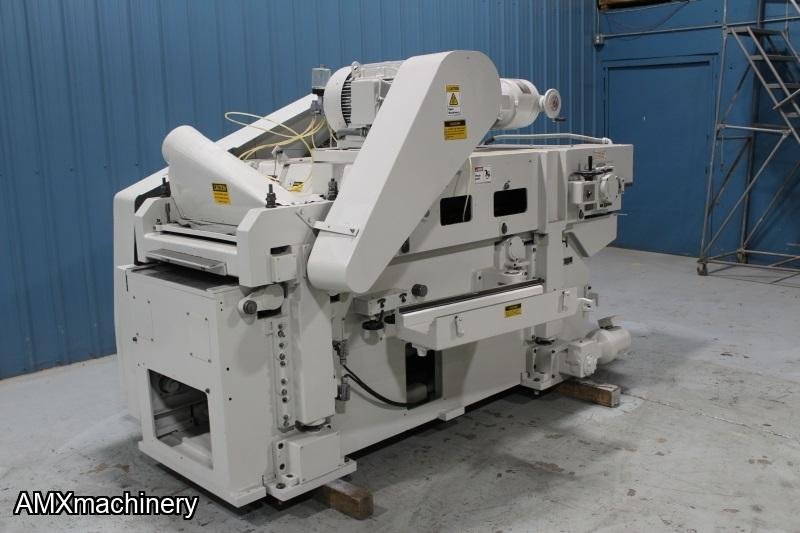

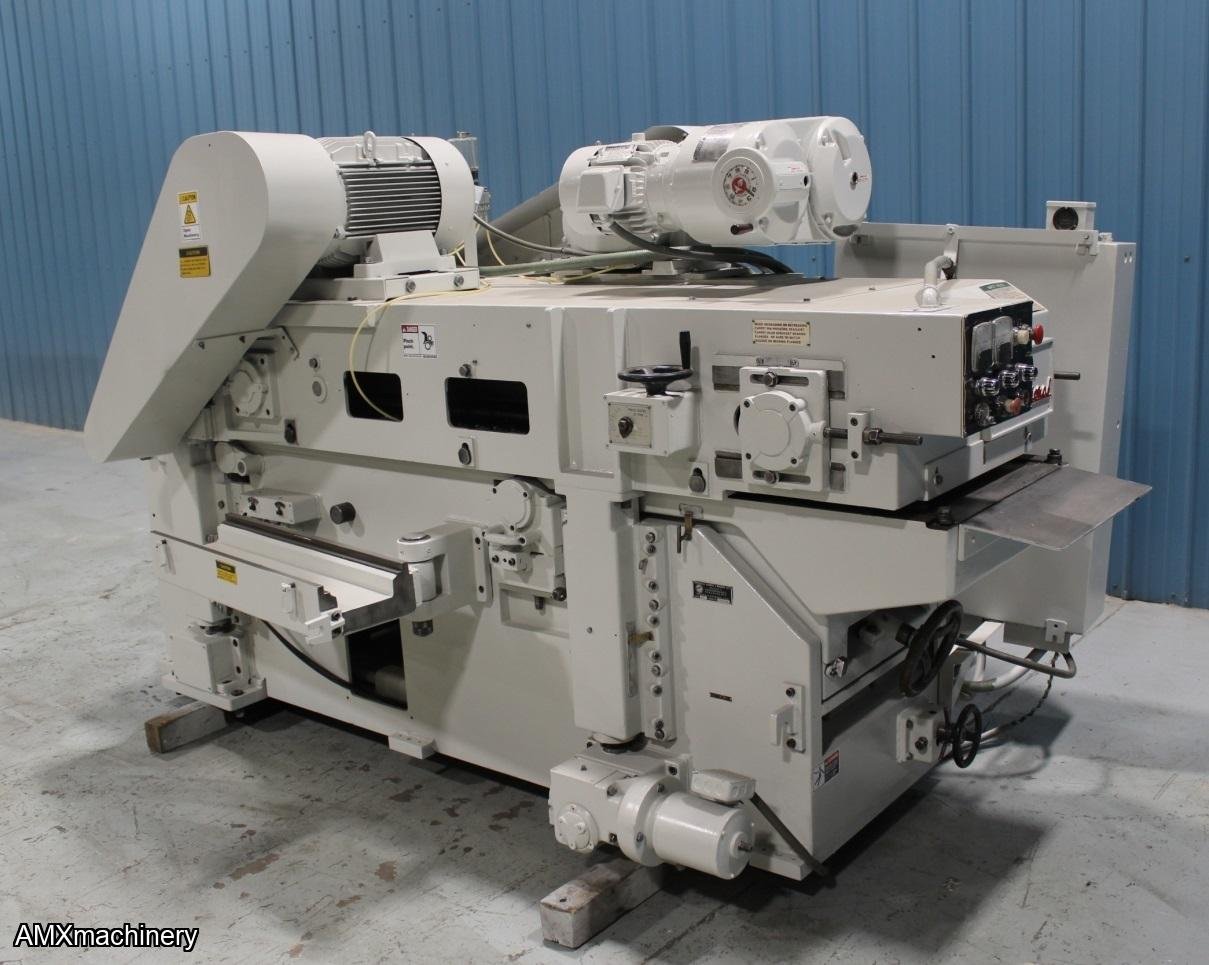

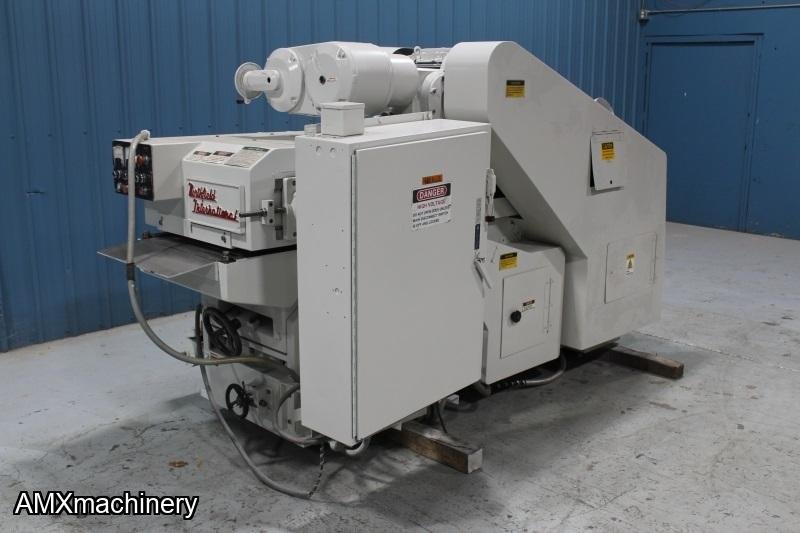

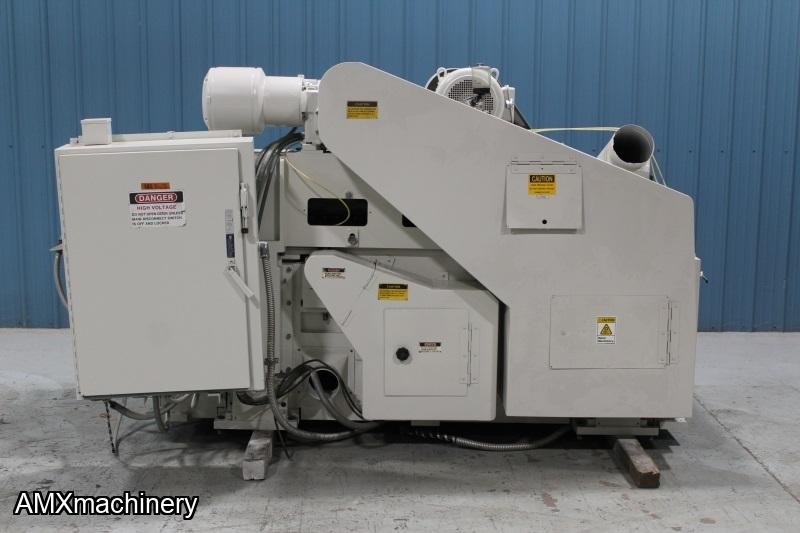

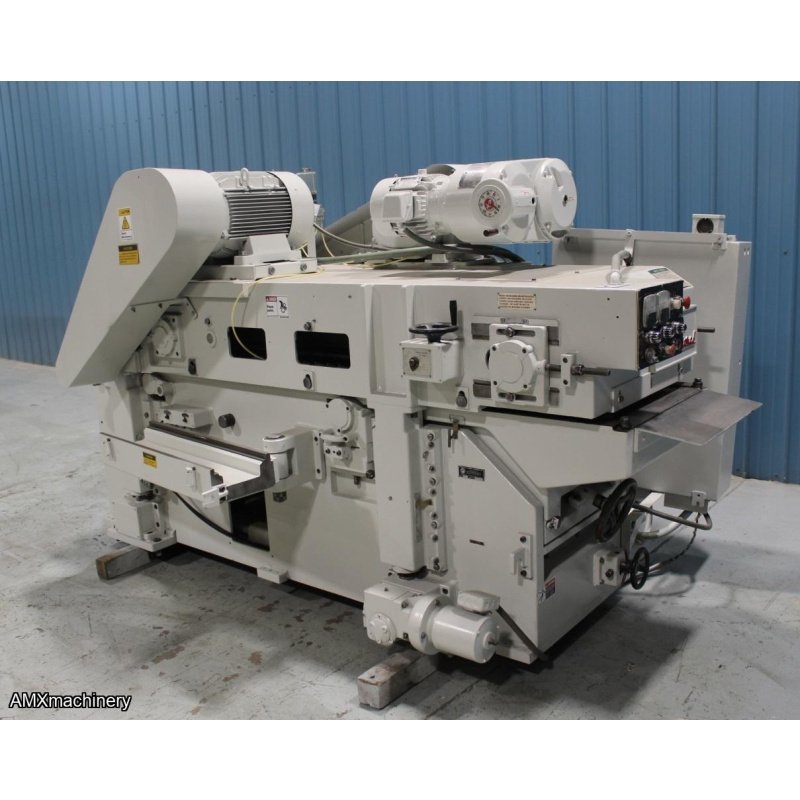

PARTE: 12329 - CEPILLO 2 CARAS - CAPACIDAD ANCHO 24” - NORTHFIELD
USADO - BUENAS CONDICIONES
24" width cap. x 6" thickness cap.
Upper spring loaded staggered hold down fingers
Top/Bottom helical carbide heads

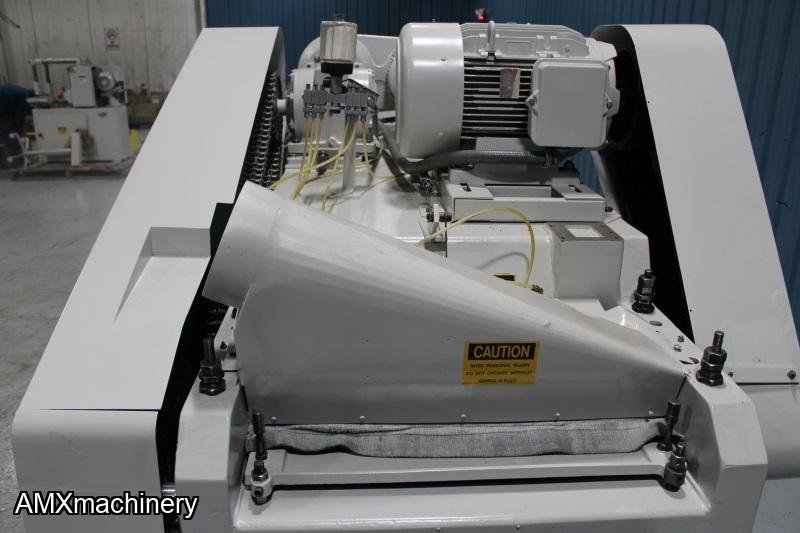

30HP; 3PH upper cutterhead motor
approx 20HP; 3PH lower cutterhead motor
5HP; 3PH variable speed feed motor with gear reducer
1HP; 3PH platen elevation motor
56" central distance between cutterheads

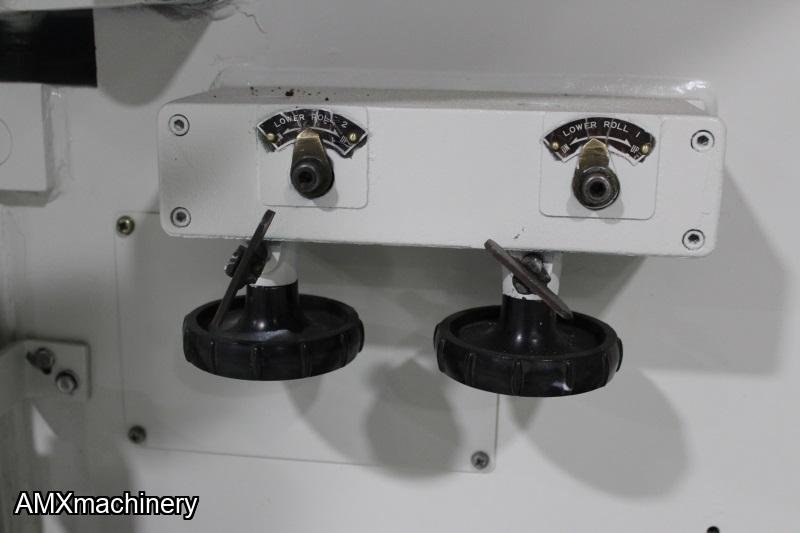

4" solid steel power driven lower feed rolls
Upper sectional feed rolls
Feed Speeds Adjust from 25 to 100 fpm
2" sectional chipbreakers
6" shortest butted piece capacity
12" shortest single piece capacity
1/4" minimum stock thickness
1/2" maximum depth of cut
Grinder: Lower grinder head swing out arm
Upper head grinder bar
Automatic lubricator
Electrical control console
