Identificador: 1301
Abierta
Descripción

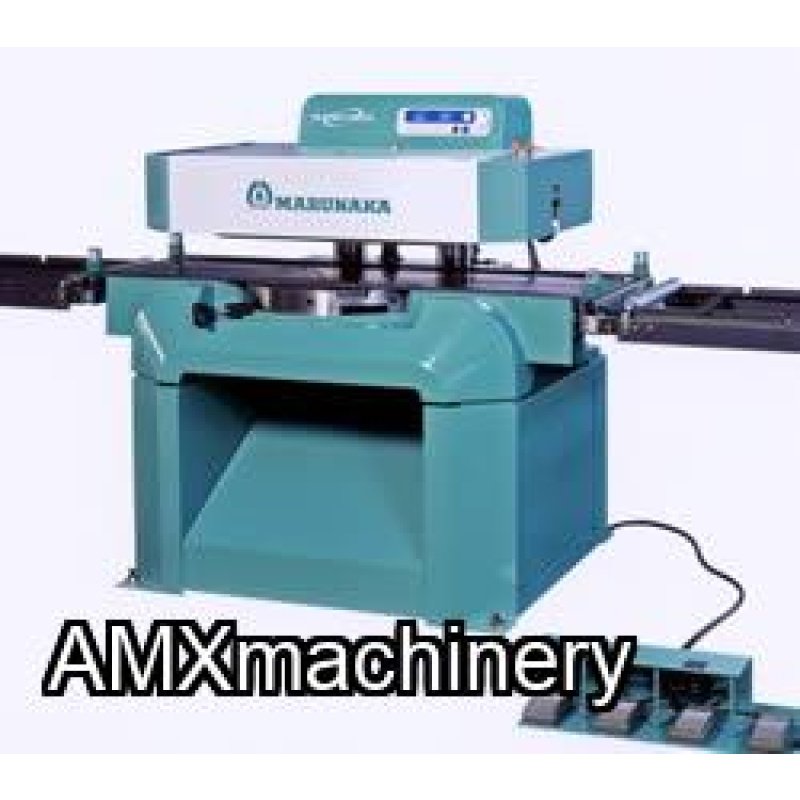

PARTE: 3MA-SUPERMECA-S - CEPILLO 1 CARA - 250 MM ANCHO - 3 HP - MARUNAKA
NUEVO CON GARANTIA
Able to operate by auto return feeding
Max Work width x Height :
250 mm (40º)
165 mm (60º)
Max work height: 180mm
Knife bias angle: 0 - 60 degree (variable)
Feed speed: 54m/min (50 hz)
Feed motor : 2.2 Kw, 3 phase
Head elevation motor : 0.1 Kw phase
Knife type: Chanching blade type
Front knife size : 335 x 66 x 8mm
Accessories:
Changing blades, front and rear roller tables and standard tools
Machine size: (WxLxH): 830 x 1280 x 1140 mm
Net Weight : 430Kgs
Packing size: (WxLxH): 1180 x 1600 x 1380 mm, G/W: 600 kg
High rigid and stable machine form promise best surface finishing.
The turn-table permits the bias angle to vary 0º ~ 60º according to the material.
Auto-return (once, twice or repeat) or One-way surfacing can be selected by micro-computer.
Machine operating status is shown at monitoring lamp
