Descripción
CANTEADORA AUTOMATICA PARTE: 2CK-MX350M
- Compact design makes it the ideal edgebanding solution for small workshops
- Pre-milling the panel ensures optimum edge quality prior to edgebanding
- Precise adjustments for optimum edge quality

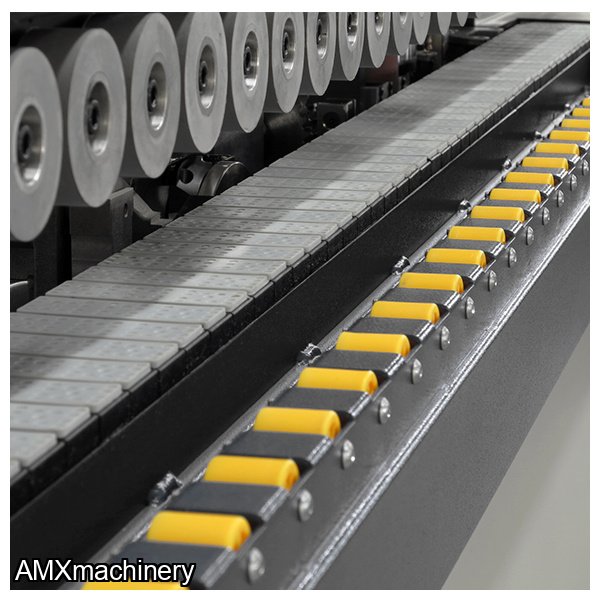

- Chain feed system ensures consistent feeding of material for consistent results
- Available in 230V 1 or 3 phase
- PLC control system with LED display and keypad
- Workpiece is fed by chain
- Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
- Automatic edge feeding with a thickness capacity of 0.4-3 mm;

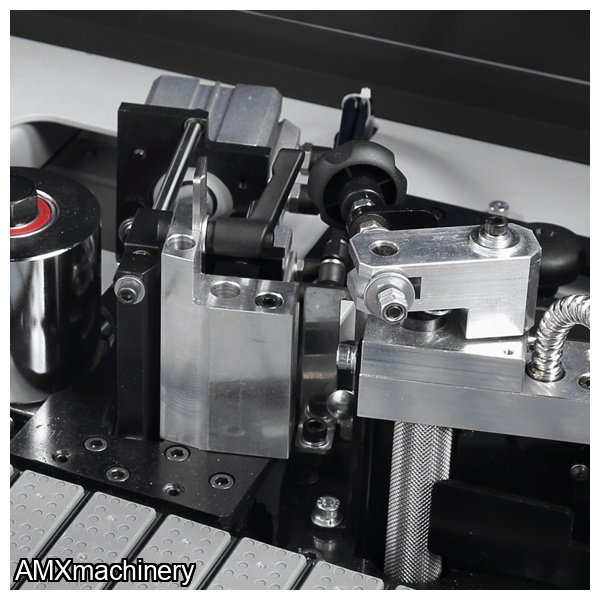

- Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

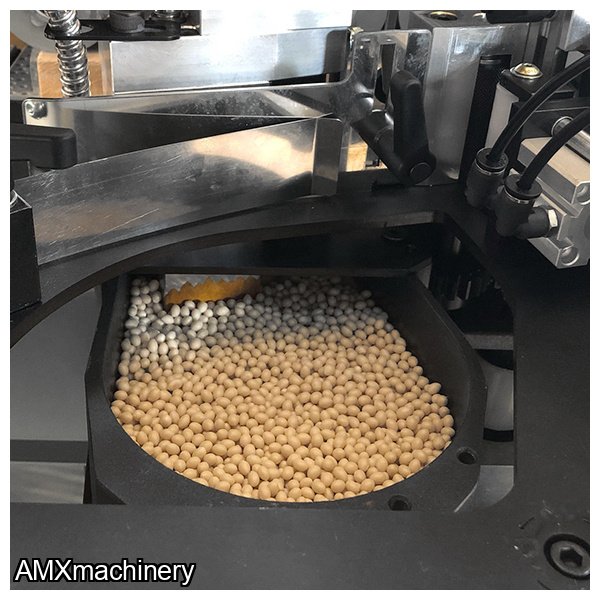

- 1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot

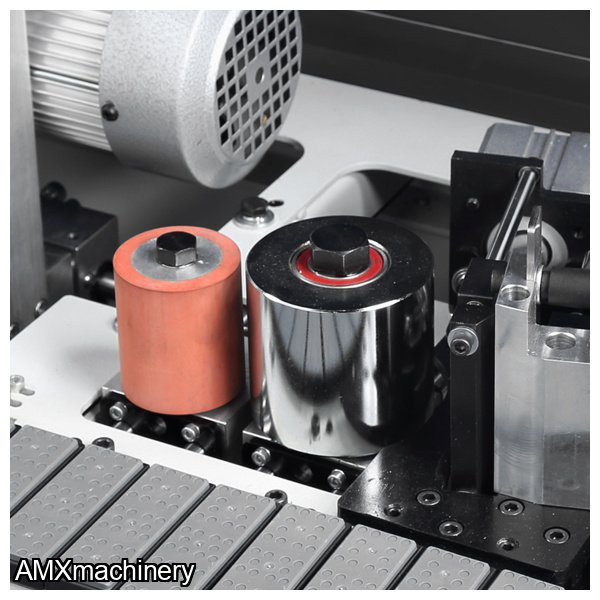

- Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
- Heavy duty pressure beam with extendable work-piece support
- Heated infeed fence for pre-heating the panel for optimum glue penetration
- Mechanical digital readouts for convenient and quick adjustment to the working units & thickness
- PRE-MILLING
Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality. - END TRIM

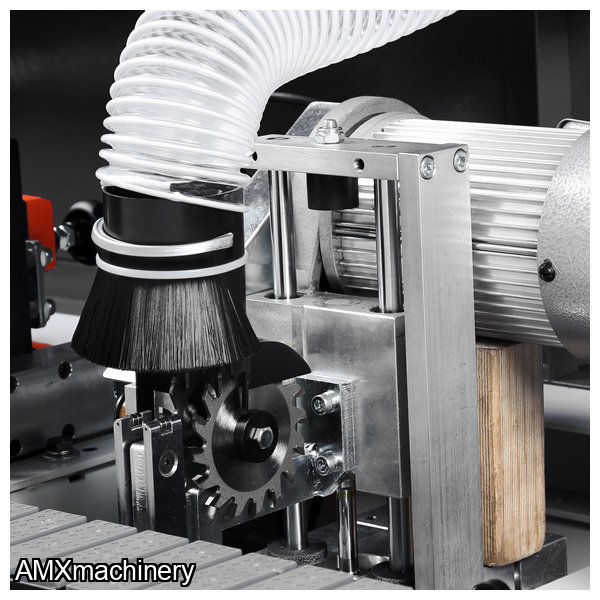

8800 RPM dual saw blade (80mm / 3.15″) end trimming unit - TOP & BOTTOM TRIM

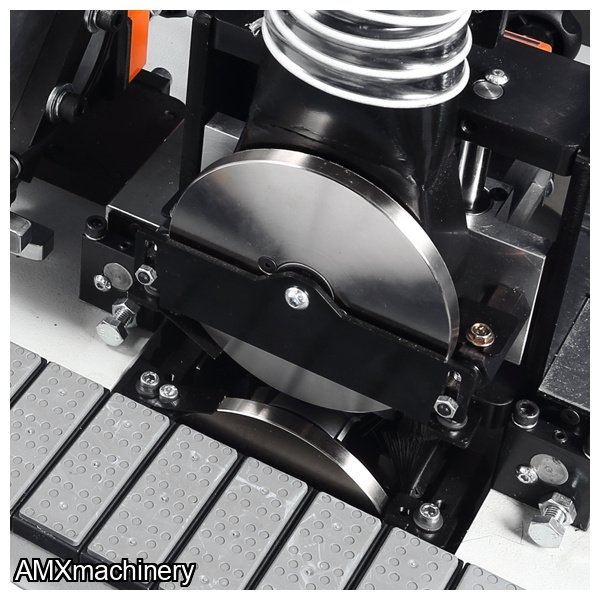

10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming - RADIUS SCRAPING
Radius scraper with 2mm radius knives can be easily excluded when not required - BUFFING
2800 RPM top & bottom buffing units to polish the machined edge
Feeding speed | 23 FPM | 7 m/min. |
Panel thickness | 0.472~1.77″ | 12~45 mm |
Edge thickness | 0.0158”~0.118” | 0.4 ~ 3 mm |
Minimum panel width | 3.54″ | 90mm |
Minimum panel length | 8 3/4″ | 220mm |
Working table height | 33.7″ | 856mm |
Extraction connection | 3 x 4” | 3 x 100mm |
Air consumption | 8.83 CFM | 250 liters/min |
Premilling spindle speed | 9000 RPM | |
Top & bottom trimmer RPM | 10500 RPM | |
Max. machine dimensions (LxWXH) | 126” x 47 ¼” x 47 ¼” | 3200 x 1200 x 1200mm |
Machine weight | 1162 lbs | 528 kgs |
Shipping dimensions (LxWxH) | ||
