Identificador: 1274
Abierta
Descripción

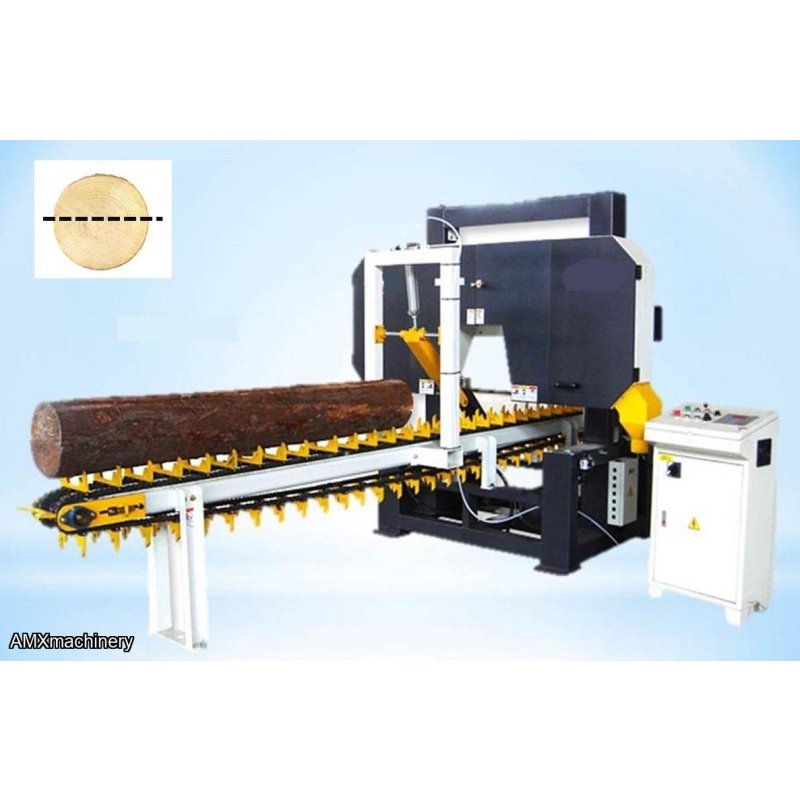

PARTE: 3HP-HP-LOG – ASERRADERO HORIZONTAL – 1 BANDA – MOTOR 30 HP
NUEVO CON GARANTIA
SCRAGG MILL
Video: https://vimeo.com/572381491
Specification:
1.Working Capacity: 120-400mm (D)
2.Balde Elevation Distance from Conveyor: 10-235mm
3.Saw Wheel Motor: 30HP
4.Elevation Motor:1/4HP
5.Saw Blade Tension by Hyd. Compensation System
6.Conveyor Length: 4500mm
7.Hydraulic Motor: 3HP
8.Saw Wheel Dimension: 34"(D) x 2"(Thickness)
9. Saw Balde Size: 5310mm(L) x 54mm(W)
10.With Mist Coolant System
11.With 30HP Inverter for Saw Wheel Motor
12.Min. Length of Working Log: 1100mm
13.Machine size: 470 x 222 x 222cm
14._______Volt,_______Hertz
OPTIONAL:
Max.Log length 4.5M - 5M
Max.long dia. 600mm
