ID: 1525
Open
Description

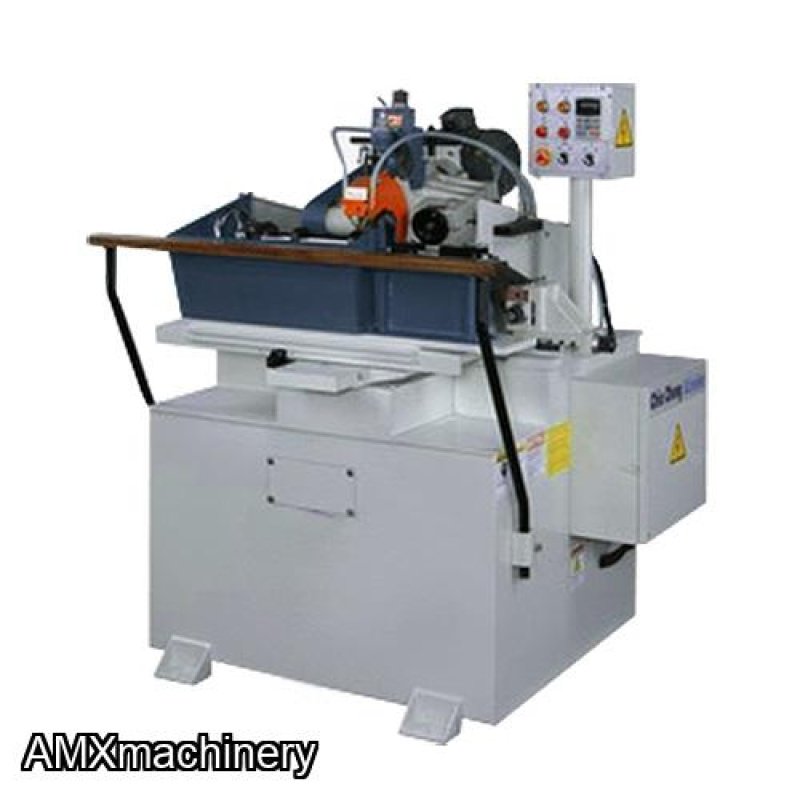

PARTE: 2TA-TG-9330 - AFILADORA DE CUCHILLAS PARA MOLDURADORA
NUEVA CON GARANTIA
FEATURES:
- Economical model for small shop.
- Work table back to front, left to right is moved on linear bearing cross roller rail sets, accuracy and durability.
- Grinding wheel head is micro adjustable and accurate. 2 HP variable speed control motor for powerful grinding.
- Easy setup template holder for accurate copy tracer.
- Knife-edge angle is adjusted by dovetails are grooved; grinding center is never changed, no matter what the angle is.
- Water splash guard and coolant tank are made with stainless steel to protect from rust.
- Easy and efficient to operate.
- Heavy sheet metal cabinet stand and cast iron body.
- High precision and durability.
|
SPECIFICATIONS |
2TA-TG-923 |
2TA-TG-9330 |
|
Grinding Capacity |
||
|
Cutter (Dia. x W) |
12" x 10" |
12" x 12" |
|
Grinding Wheel Size |
7.5", 60mm Dia |
8" x 2¼" |
|
Grinding Head Travel |
13" |
13" |
|
Grinding Wheel Speed |
1500-4500 RPM (Var) |
1500-2900 RPM (Var) |
|
Grinding Wheel Motor |
2 HP |
2 HP |
|
Coolant Pump Motor |
1/8 HP |
1/8 HP |
|
N.W. (LBS) |
1050 LBS |
1100 LBS |
|
G.W. (LBS) |
1450 LBS |
1500 LBS |
