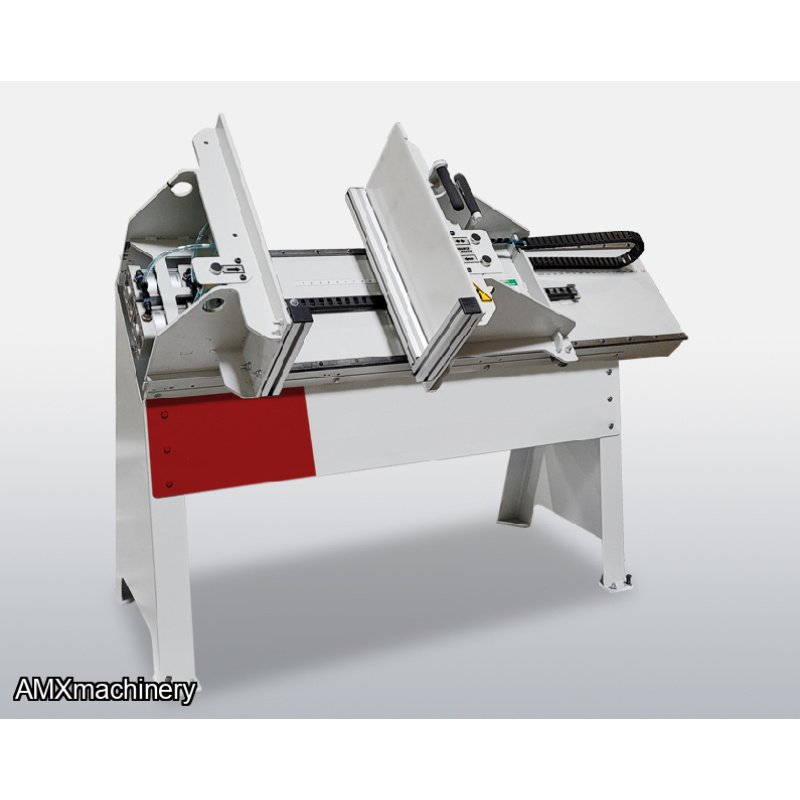

ABRAZADERA PARA ARMADORA DE CAJONES

Offers the rugged construction and ease of set-up of high production machines at a fraction of the price.   Quickly clamp your drawer boxes precisely and square ever time.

• Quick setting drawer box clamp
• Strong machine structure ensures square drawer boxes
• Ergonomic design for convenient loading and unloading

• Capable of clamping a wide range of drawer types: dovetail, dowel, tongue & groove, and dado
• Fast changeover between various drawer widths with the rapid change clamp
• Ergonomic workstation on an angle to improve production output
• Double acting air cylinders can apply pressure progressively allowing for easy fitting of the bottom panel in the lateral grooves
• The Progressive Compression Mode operates as a jog button. It offers the operator total control and flexibility in the execution of the assembly process.
• Two-hand control keeps your operator’s fingers away from the danger zone during the compression cycle
• 10” (Height) x 24” (Depth) x 36” (Width) clamping capacity
