PARTE: 1FJ-020 - SIERRA TRONZADORA - PENDULO - MOTOR 7.5 HP - DISCO 22” Nueva con garantía – 6 meses sobre defectos de fabricación en partes mecánicas Disco 22” diámetro Motor 7.5 HP, 220/440V, 3 fases Medida maquina: 48" largo x 33" ancho x 48" alto Peso: 250 kg

PARTE: 2MA-800CE - SIERRA RADIAL - DISCO 15.75” - 4 HP - LARGO 27.75” NUEVA CON GARANTIAHeavy castings and the eight bearing saw carriage makes this machine very accurate and rigid. European quality made to last!4 HP, 2800 RPM motor400 mm (15.75") Blade diameter capacity (Not included)30 mm Arbor diameter73.23" x 45.08" Table size27.75" Max crosscut length on 3/4" thick material (90 deg)0 to 40.5" Rip capacity4.9" Max depth of cut19.68" Max cut length at 45 deg on right side12.20" Ma...

PARTE: 2MA-640CE - SIERRA RADIAL - DISCO 15.75” - 4 HP - LARGO 21.5” NUEVA CON GARANTIAHeavy castings and the eight bearing saw carriage makes this machine very accurate and rigid. European quality made to last!4 HP for 3-Phase Option, 3 HP for Single Phase Option, 2800 RPM motor400 mm (15.75") Blade diameter (not included)62.20" x 38.39" Table size21.5" Max crosscut length on 3/4" thick material0 to 33.8" Rip capacity4.9" Max depth of cut15" Max cut length at 45 deg. On right side...

PARTE: AMX-10200 - SIERRA PARA CUBIERTAS DE COCINA - MOTOR 5 HP, 3 FASESNUEVA CON GARANTIADISCO CORTADOR 14" MOTOR 5 HP, 220V, 3 FASESARRANCADOR INCLUIDOMEDIDAS TOTALES: 1.5 MTS FONDO X 1.3 MTS FRENTE X 1.1 MTS ALTOALTURA MESA: 70 CMSOPCIONAL:MOTOR 5 HP, 220V, 2 FASES- NO INCLUYE LA PLANTILLA QUE SE VE EN LAS FOTOS PARA COLOCAR LAS CUBIERTAS

PARTE: 1N-SCA-15 - SIERRA CINTA - VOLANTE 39.5” (100 CM) - MOTOR 15 HPNuevo con garantíaMismo tamaño de sierra cinta que los aserraderosVolante de 100 cm diámetro, para sierra cinta de 4” de anchoOpcional: motor de 20 HP y 25 HP Uso Rudo, Industrial y ContinuoVideo: https://vimeo.com/584002334 CARACTERISTICAS 1N-SCA-15 DIAM. VOLANTE 40” - 100 CM PARA CINTA 4” MOTOR ...

PARTE: 3MA-HO-PS001 – SIERRA MULTIPLE DE PANELES – CAPACIDAD DE ANCHO 1300 Nueva con Garantía Voltage: 380V/50HZ/3PH or customized Warranty: 1 Year Power: 22kw Working width: 1300mm Working thickness: 5-50mm Main motor power: 22kw (30 HP) Feeding motor power: 3kw (4 HP) Feeding speed: 0-15m/min Specification of main saw blade diameter: 255*30mm Dimensions (L*W*H): 2830*1830*1530mm Optional: - Certification: CE/ISO9001- Voltage: 220/440V/60HZ/...

PARTE: 4ZA-MLS130PPD - SIERRA MULTIPLE DE PANELES - 52" ANCHO NUEVA CON GARANTIA CARACTERÍSTICAS TÉCNICAS: - Regulación de profundidad de corte y de fresado sin cambiar la altura del plano de trabajo respecto al suelo. - Apertura del grupo de rodillos por cilindro neumático con sensor temporizado, para simplificar el montaje de las herramientas. bocas de aspiración Ø 200 mm, inferior y superior (Rif. 4) - Capacidad de la aspiración de virutas a la velocidad de 30 m/s...

PARTE: 2FA-MET20 – SIERRA TRIMMER – 120" LARGO - MULTISIERRA NUEVA CON GARANTIA Standard Features Low Profile Heavy Duty Framing Flat Waste & Catch Conveyors   Machine Specs Dimensions Length: 13′ Width: 72" Height: 59" Infeed Height: 41" Width Including Conveyor: 100"   Power Blade Motor: 5 HP 208/230/480/3/60 TEFC lnfeed Motor: 1-1/2 HP 208/230/480/3/60 TEFC Waste Conveyor Motor: 1/2 HP 208/230/480/3/60 TEFC Take A...

PARTE: 2FA-DET20 – SIERRA TRIMMER – 74" LARGO NUEVA CON GARANTIA Adjustable head system that can process up to 4-1 /2" tall material. This machine's sturdy construction, quick cycle time, and simplicity will add to any operation.   Standard Features 20" Carbide Blades Adjustable Blade Position Up to 4-1/2" Tall Capacity   Machine Specs Dimensions Length: 8′ Width: 8′ Height: 4′ Infeed Height: 3′ 4"   Power Arbor Mo...

SIERRA ELCON TITAN CUTTING HEIGHT 3500 MMIt is safe to say that every Elcon panel saw is custom built and hand made in the Netherlands. And every now and then we create a machine that is truly unique due to the specific customer's needs. Behold this TITAN that is made to cut prefab walls of up to 200mm thick. Cutting height is an impressive 3,5 metres high!Would you like to know more? Please contact us.

SIERRA ELCON SUPRA 18000 MM X 3500 MM X 120 MMFollowing up on last weeks custom built Elcon. The spotlight is on the SUPRA, a horizontal panel saw. Specifically made to handle ultra large panels with sizes of up-to 18m x 3,5m. It cuts through various kinds of materials with thicknesses of up-to 120mm.The machine in the picture is in use by NAFFCO FZCO in the UAE, a world leader in firefighting equipment. Contact us for more information. Elcon, precisely for you.

ELCON 320 DSX-E TO CUT THROUGHT 0-135 MM AUMINUMWhen do you feel challenged as a company?When a customer asks you to create something out of the ordinary.In this case German trailer manufacturer Brüggen needed a solution to cut 14m long x 3m20 wide sandwich panels for box bodies. Most of them are used to build reefers to transport perishables. We accepted the challenge and delivered this custom built space saving solution. A 320 DSXE 14.300.Looking for something similar, feel free to challeng...

ELCON 320 DSX-E TO CUT THROUGHT 0-135 MM AUMINUMA vertical panel saw can be used to cut through various materials, like wood based,plastics, composites etc.This episode's custom built Elcon panel saw was developed to cut through aluminium tailgate / cargolift. A bar code scanner tells the machine to cut off the left and left and right side. The sawing speed is automatically adjusted to the thickness of the material, in this case up to 135mm!

PARTE: 4EL-LANCET - SIERRA VERTICAL - CON NAVAJA - ELCONHow to improve/speed up the processing of multiwall polycarbonate sheets?By using a static knife instead of a sawblade.  This reduces the amount of time spent on cleaning out the channels. The static knife delivers precise and clean cuts, without chips. Thus reducing wasting time on the post-processing. Some of the companies owning a Lancet reported up to 75% time saved.The Elcon Lancet is another #custombuilt solution that very few people...

PARTE: 4EL-M125400 – SIERRA VERTICAL – 1250 X 3300 MM - ELCON 125 EDGEPARTE: 4EL-M155400 – SIERRA VERTICAL – 1550 X 3300 MM - ELCON 155 EDGEPARTE: 4EL-M185400 – SIERRA VERTICAL – 1850 X 3300 MM - ELCON 185 EDGEPARTE: 4EL-M220400 – SIERRA VERTICAL – 2200 X 4300 MM - ELCON 220 EDGE The New EDGE.Trendy and eye catching design and well equipped.Looking like a picture in a frame, the all new Edge was developed from scratch. It features a new and lighter frame, yet it is still as rigi...

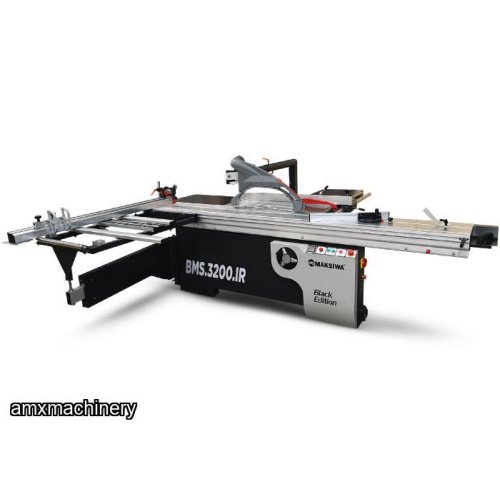

PARTE: 2MK- BMS-3200-IR – SIERRA ESCUADRADORA – 3200 MM – 5 HP, 220V, 3 FASES – DISCO 12”Tailor made to provide high quality precise cuts in diverse angles with a max cut depth of 4 inches (100 mm) at 90º. It includes a 5 HP motor, cutting guides, miter guide, blade guard. The noise level of this equipment is 76.5 dB (the machine turned on only) up to 110 dB (with the machine on and the exhaust system on. The noise will vary in accordance with the location the machine is in and the ma...

2OG-PP-001 – SIERRA MULTIPLE VAIVEN – FRAME SAW – CORTE DELGADONUEVA CON GARANTIASturdy, solid cast iron base and is equipped with a 15kW (20 HP) main motor.Cuts solid wood blocks into glueable slats with minimal saw kerf waste.The machine can run products up to 250mm in height (10”).The Power Plus Frame Saw provides a high performance and quality machine for the production of veneer slats. The machine can be fitted with a custom channel system that will feed up to 5 boards simultaneousl...

PARTE # SIL-DC-SC10-B - SIERRA CINTA DE 10" - MOTOR 1/2 HP NUEVA CON GARANTIAMOTOR: 1/2 HP, 110V, 60 Hz, 1 FASEDISTANCIA DE CINTA A COLUMNA: 230 MMALTURA MAXIMA DE CORTE: 80 MMTAMANO DE LA MESA: 290 X 290 MMINCLINACION DE LA MESA: 0 - 45 GRADOSLONGITUD DE LA SIERRA CINTA: 1511 MMANCHO DE LA SIERRA CINTA: 9.8 MMPESO: 16 KGSEMPAQUE: 1 CAJA

PARTE: 4CV-43101-0 - SIERRA MULTIPLE VAIVEN – 15 HPNUEVA CON GARANTIASaws motor power: 15 HpAdvance speed: 0,3 - 1,7 m/minCutting height: 30 - 200 mmMin. piece length: 300 mmFrame thickness: 1,1 - 3 mmWeight: 2500 kgAdvanced technology, stable and reliableMaximum number of sawing motion is 480 times per minuteSaw blade loss: 0.9, 1.2, 1.4 mmSuitable for heavy bamboo sawing, flooring, shutter, guitar, wall panel and so on.Machine dimensions: 3600 x 880 x 2500mm

PARTE # 2MKE-6480-20 – SIERRA DE PANELES VERTICAL – MOTOR 3 ¼ HP – SIERRA 8 ¼” DIAMETRO - MILWAUKEENueva con garantíaPRODUCT SPECIFICATIONSCord Type: 20' FixedVoltage: 120V ACLength: 60"Arbor Size: 5/8"No Load RPM: 5,800Construction Type: Steel, Square TubeBlade: 8-1/4"Spindle: 5/8"Amps: 15Weight: 180 LbsHeigh: 70"Power Source: Corded KEY FEATURES:Rigid all steel frame, square tubing is electrically welded to prevent warping or twisting.Comfortable horizontal handle for convenient on...
